A Long Text about Seven Short Minutes

On November 1, 2019 By Corporal FriskIn Finland, Naval1 Comment

Twelve years ago, about this time of the year, I was charging down a sea lane in the outer archipelago as the helmsman and engineer of a Jurmo-class landing craft. On my left side one of my fellow conscripts sat and focused on navigating, as he was working as the skipper of the vessel that day. Both of us were also keeping a lookout around the vessel. We had both received the same training, allowing to us serve as helmsman/engineer or as the skipper/navigator of the Jurmo, and when out on longer exercises we usually rotated between positions every other day. Following a sharp left-hand turn which took us straight towards an island I spotted a Pansio-class mineferry. Just before the island we were headed towards we would turn sharply to the right, and the large vessel now sat directly at the turning point, in front of the island. As we got closer, I noticed that it seemed like the skipper might not have noticed the mineferry, so a couple of hundred meters out, with plenty enough time for us to take the turn safely, I drew his attention to the vessel and asked how close he wanted to go. “Oh fuck, I did not see that one coming,” he said. “Helm to the right.” I acknowledged the ordered and we used the fact that we had plenty of water under the keel to our advantage to cut the corner slightly to maintain a safe distance without having to slow down for the passage.

Just over eight years ago, I was on my first ‘real’ job in the maritime industry working the summer at local boatyard Kewatec Aluboat. Much of the job revolved around the Pilot 1500-class of fast pilot vessels which were just being finished and delivered to the Finnish pilotage service Finnpilot Pilotage Oy. Despite being a green mechanical engineer roughly halfway through university I got to do some fairly interesting stuff, such as riding along on the sea trials to keep book on results such as RPM relative to speed and noise level measurements. Eventually Kewatec would be my first full-time employer, and I spent a few really interesting years there before moving on to what was then Rolls-Royce’s waterjet division (now Kongsberg Maritime Finland).

Both of these experiences came vividly back when I last week got a Twitter DM with the Finnish Safety Investigation Authority’s report on an incident where the Pilot 1500-class fast pilot vessel L239 had come close to colliding with the Hamina-class fast attack craft Hanko last December. Out of curiosity I did a quick glance through the abstract of the report, and might have left it at that if it wasn’t for the fact that the newspaper headlines that came out of Finnish daily Turun Sanomat over the next days didn’t square with the impression I had been left with.

Screenshot 2019-10-30 at 19.19.56 — 24 October 2019: “SIAF: Attack craft hiding caused incident – requests risk assessment plan from the Navy”

Screenshot 2019-10-30 at 19.24.00 — 25 October 2019: “The Navy will continue to sail around with safety signal blacked out – The collision was 8 seconds away”

In fact, the report does not lay the blame on the lack of AIS on the part of the Hanko. Nor is AIS some kind of magic safety beacon. But let’s start from the beginning.

In the early hours of 1 December 2018 Hanko was transiting southwards in the Sköldvik sea lane. The weather and visibility was generally good (considering it was pitch-black with clouds), but the wind was near gale at an average speed of 16 m/s (note that in the narrow waters this meant a wave height of 2.4 meters). At the same time, L239 left Emäsalo pilot station and entered the same lane heading north. Hanko picked up the vessel as soon as she left port, and started tracking her using normal procedures. Notably, Hanko that had been steaming down the lane to the left of the midline (her left) altered course slightly to get over to the right side of the lane to allow for a standard passing where both vessels hold to starboard (i.e. right-hand traffic as is the international standard on the seas). Hanko, in accordance with standard procedures of the Finnish Navy, did not have her AIS switched on, but had reported her general area of operating to the local Vessel Traffic Service (VTS), which informed the pilot vessel that a naval vessel was operating in the area. L239 did however not spot the Hanko when she left port, and a radar echo of the vessel was dismissed as a flock of birds.

The plotted course of the L239 (red) and Hanko (Blue). Source: OTKES

The route was a standard run for the L239, and when the lane was empty the pilot vessels usually took the shortest (and somewhat more sheltered) route in the interest of saving time and fuel. This put the pilot vessel well to the left of the middle line, i.e. heading straight for the Hanko. While Hanko was cruising at a moderate speed of about ten knots, the L239 was doing close to 25 knots with the wind at its back. A few minutes later the crew on the bridge of the Hanko realised that the pilot vessel hadn’t noticed them and immediately stopped (as the vessel is equipped with waterjets, it is able to quickly stop even from a considerable speed). At the same time the skipper of the pilot vessel noticed something in front of him, and turned on the spotlight. This showed an unidentified vessel right in their course, so he quickly reduced speed and turned right towards the midline of the sea lane. The two vessels passed each other at approximately 40 meters distance. The whole incident had taken place in less than seven minutes from L239 leaving the port.

Here we’ll take a short interlude to discuss what AIS is and isn’t. AIS is an automatic transponder system that sends data over the normal VHF-band. This usually include the vessel’s name, position, heading/course, speed, and potentially a number of other pieces of information (turn rate, heel, destination, ETA, current mode of operation, …). On the positive side it is inexpensive, simple, and when combined with other systems such as radars and chart plotters it provide a situational picture that is easy to read and interpret. It is mandatory equipment for a number of vessels, including merchant and passenger vessels. Crucially, it is not mandatory for neither pilot vessels nor for naval vessels.

AIS has been in the headlines a number of times in recent years, including its role in the collisions of Norwegian frigate KNMS Helge Ingstad and the two US Navy destroyers that collided in separate incidents in the Pacific in 2017. However, it is crucial to note that not only is AIS susceptible to spoofing, it can also simply be switched off at the flick of a button. In Finnish waters, as opposed to out on the high seas is the majority of vessels moving around are not fitted with AIS due to their small size. Pleasure crafts might not be moving around in the Sköldvik area in the middle of the night in two meter high waves in December in any huge numbers, but there’s always the risk that some local is heading out to check on his summer cottage. As such, AIS is not God-mode view on a bridge display, but just another (very good) source of information to build up situational awareness. As a matter of fact, navigating solely on electronic aids such as AIS, or radar for that matter, is not allowed under international rules, as all vessels are required to keep a proper lookout.

Going back to my opening story from 2007, there were a few issues that could have led to it ending badly. The first was that we were under a tight schedule. We were part of an exercise scenario with several moving parts, and it was crucial that our vessel were at the designated point at the designated time. The second issue was that the timing of us and the Pansio-class crossing paths was very unfortunate, with it coming from an unexpected angle and with our vessel turning towards it at a time window measured in mere minutes when it wasn’t silhouetted against the horizon but completely in front of an island. The vessel, like the Hamina-class, is also painted to easily hide in the archipelago, and the colours work extremely well. However, the Navy doesn’t just throw enlisted conscripts into a fifteen meter vessel with a thousands horsepowers to work with and see what happens. There are clear cut roles and procedures to follow to ensure safe operations, and before one gets to sign the line next to the word “Skipper” in the logbook there’s a number of steps and certifications that you need to meet.

As mentioned, these procedures include that both crewmembers keep a lookout. The reason is simple: the skipper will need to keep one eye on the navigation, including the paper chart, chart plotter, and the radar, while the helmsman will need to keep one eye on the engine instruments. If something starts to go ever so slightly off the rails, it is easy for either crew member to be distracted and spend too little time looking out the windows, and as mr. Murphy dictates, that always happens at the worst possible time. As such, having both crew members keep their eyes open is a necessity. In our case, the training showed its worth, and the situation was solved safely and without incident.

As such, reading the report, the most baffling detail for me personally is that the pilot vessel always operate with two certified skippers aboard, of which one function as the vessel crew and the other is the safety guy when the pilot is transiting between the vessel and the ship. This isn’t baffling in itself, but the safety guy has no duties whatsoever while the vessel is underway, not even a general recommendation to keep looking out the windows! While the vessel is built to be able to be operated by a single crew member, not using the available resources is a strange decision to say the least.

Mod IMG_7072 — FNS Hamina leading sister FNS Hanko, showing their dark colours optmised for hiding in the archipelago. Source: Own picture

The Hanko on the other hand was naturally operating with a significantly larger crew. The persons on the bridge included not only an officer of the watch, but also a navigator, a assistant navigator, and a dedicated lookout working outside of the vessel. As noted, the crew noticed the L239 as soon as it put out to sea, and assumed that the pilot vessel had noticed them in turn.

This was likely the single largest shortcoming on the part of the crew of the Hanko. Having a very good situational awareness thanks to good working procedures, it’s easy to start assuming this is how all professionals at sea operates. Giving a short radio call to the L239 to confirm that Hanko switches from left to right side of the sea lane for a standard meeting would have ensured that both vessels knew of each other’s presence. Hindsight 20/20, as they say.

However, the actions of the pilot vessel is harder to explain. The skipper knew that there was a naval vessel in the area but apparently did not try to locate it. There doesn’t seem to have been any discussion that the safety man would assist in keeping a lookout, nor any decision to slow down or keep in the correct part of the lane in case someone else was moving in the night. Granted the Pilot 1500 series is well-equipped to be handled by a single crew member, it sports two large displays for the radar and the chart plotter placed in front of the skipper to allow for a minimum of head movement when switching between checking them and looking out the windows. However, the rule (both written and unwritten) is that electronic aids support looking out the windows, not the other way around. This is especially true in cases where getting a clean radar picture is difficult, such as in rain or rough waves, where one easily end up either getting the screen overtly cluttered or filtering away real echos. While the report doesn’t mention it, the fact that such as large radar target as the Hanko was mistaken for a flock of birds does indicate that the radar didn’t provide a good and easy to read radar picture at the time of the incident.

Stealth interlude: Yes, Hanko feature signature reduction measures, but it isn’t invisible to radar by any stretch of imagination. In a later reconstruction the pilot vessel’s radar was able to pick up the FAC well beyond two nautical miles (beyond 3,700 meters), the VTS also got a clear radar echo of the vessel, despite the tracking algorithm having some issues tracking Hanko correctly at the time of the incident.

The report by the authorities notes five conclusions, of which two are related to the reporting processes for incidents and accidents on a national level. The three others are:

The tracking of non-AIS transmitting vessels require use of radar and particular care by the VTS-operators,
The resources of the pilot vessel were not used optimally considering the conditions,
The crew aboard vessels that try to avoid detection don’t necessarily recognise the risks this create.

In other words, the report does not blame the Hanko, nor the lack of transmitting AIS on it’s part. The standard procedure of the Finnish Navy is to have the AIS turned off due to operational security considerations. Navies around the world have varied views on the use of AIS, with some having it always off, some having it on without IDs, and some having it on close to shore but off when at sea. Steffan Watkins has a good overview, but as usual things are different between the Atlantic and the Gulf of Finland.

A key difference is that Finnish vessels don’t transit. The operating area often starts when the quay is left behind. Another is that the Finnish Navy uses dispersed and wartime infrastructure, which you don’t necessarily want to show on the internet. And while fixed infrastructure likely is known to the adversary, the usage isn’t as easy to judge considering the concealed nature of the archipelago. Space based sensors are one possibility, but they don’t either provide the kind of continuous tracking that AIS creates. Switching it on and off also degrades OPSEC, as it shows when and where a mission has started. Just as when observing a black hole, you can glean things from observing what isn’t there in the same way as observing what actually is visible.

1920px-nagu_kajakmaraton — The Finnish archipelago is a crowded place. Source: Cogitato via Wikimedia Commons

Without having insight in the finer details of how the Finnish Navy bridge crew works, I find it plausible that the report might have a point in that the risks of not being noticed might be underestimated and deserve more attention. However, as the Navy will never be able to maintain OPSEC and spend significant time with the AIS active, the way forward for the Navy is likely to be a bit more proactive with hailing approaching vessels on the VHF and using lights more liberally, as there always will be people on the seas that aren’t quite alert enough.

Another important detail is that as mentioned, in the archipelago as opposed to out on the Atlantic Ocean one can’t assume that all vessels in the area are of the size that they are equipped with AIS. Granted, the pleasure craft traffic is concentrated to good weather days in July, but there’s always the village fanatic who is out with his nets regardless of time of the year and weather. And if you keep a good enough lookout and have adjusted your speed appropriately that you will spot someone kayaking in time to take evasive actions, you will spot a Hamina-class vessel as well, AIS or not.

Big and Small Sisters

On October 7, 2019October 7, 2019 By Corporal FriskIn Finland, Naval9 Comments

The Finnish naval news keeps dropping at a high rate following the contract signing ceremonies two weeks ago. A few further details have emerged on the Pohjanmaa-class, while the FNS Tornio is currently undergoing acceptance tests as the first of the four Hamina-class sisters to pass through their mid-life update.

Screenshot 2019-10-01 at 20.21.54 — Still from Saab’s system video, featuring a NH 90 on the helideck. Source: Saab

Saab released a video highlighting the different systems they supply to the Pohjanmaa-class. An interesting detail is the inclusion of a grey-painted NH 90 on the helicopter deck. It nicely illustrates the size of the Finnish Army’s main helicopter relative to the ship, showing that while it can touch down on the deck, it is too large for the hangar and won’t be based aboard. The fact that the helicopter is grey is curious. All Finnish NH 90s are painted in a three-colour green-black camouflage, so either the color is an oversight (likely) or it may portray one of the Swedish Air Force’s maritime Hkp 14F on a visit. This will likely be a somewhat regular occurrence beginning in the last years of the next decade, considering the tight cooperation between the two navies. The Hkp 14F are also the sole non-Russian ASW-capable helicopters of the northern Baltic Sea region, meaning that once they have achieved FOC they will certainly be welcome visitors.

HKP14F — The Hkp 14F showing its whole-grey look and search radar. Source: Lasse Jansson/Försvarsmakten

Speaking of sub-hunting, it had escaped my attention (or memory) that a rather detailed description of the propulsion arrangement had been found in Maanpuolustuksen osto-opas 2/2018. The system will be twin-shafts with controllable-pitch propellers (CPP), powered by combined diesel-electric and gas turbine (CODLAG). Four diesel engines will be working as generators, producing electricity to two electric motors which power the vessel during normal operations. When requiring max speed the gas turbine is fired up, and it will be connected through gearboxes to the two shafts. The total power will be around 30 MW (40,200 hp). An interesting comparison is the German F125-class frigates which sport a very similar CODLAG arrangement rated at 31.6 MW, and consisting of a single LM2500 gas turbine from General Electric (20 MW), four 20V 4000 M53B diesel gensets from MTU Friedrichshafen (totalling 12 MW), two electrical motors (totalling 9 MW), and Renk gearboxes. For those wondering where the rest of the power from the gensets go, there’s quite a bit of electronics aboard a modern warship, as well as a 1 MW bow thruster in the bow of the F125. While no manufacturers have been announced for the Pohjanmaa-class, the F125-suppliers can be considered low-odds candidates. The Rolls-Royce MT30 has scored a few impressive references recently, including replacing the LM2500 on the ROK FFX Batch II, but it might be a tad too big for the Pohjanmaa. For sub-hunting, two of the gensets on the Pohjanmaa will receive additional signature reducing features (acoustic and vibration). This allows slow-speed operations in extreme silence, in essence providing the corvettes with a trolling mode to use a boating analogy (even if the gamefish is on the bigger side in this case). The Pohjanmaa-class is also equipped with twin bow thrusters, a crucial feature to ensure that the vessels can get around unassisted in the narrow waterways of the archipelago, including when mooring at the spartan infrastructure used for dispersed operations.

codlag-diagram — Principal view of a twin-shaft CODLAG system with one gas turbine, twin electrical motors, and four diesel generators. Source: Alureiter via Wikimedia Commons

Commodore Harju, CinC of the Finnish Navy, also published a blog post on the Finnish Defence Forces’ blog discussing the vessels. While giving few details, the blog hints at an endurance of at least two full weeks at sea, quite possibly longer. Considering that the operational environment will rarely sees the vessels being further than half a day of sailing away from the nearest friendly port, this is a significant number and a game-changer compared to the Hamina-class.

Perhaps the most significant message of the post was that the commodore acknowledges the strain currently being placed on the servicemen and -women of the fleet. The service has seen the workload increase with the increased level of readiness that has become a staple of the Finnish Defence Forces post-Crimea. This has hit the small number of vessel crews particularly hard, especially when coupled with the fact that few of the vessels are available during wintertime as well as the prolonged absence of the Rauma-class during their MLU and while dealing with the issues caused by hull cracks following it. This has placed even higher demands on the crews serving aboard the mineships and the Hamina-class FAC. With the change over from the Hämenmaa- and Rauma-classes to the Pohjanmaa-class, crews will have to be trained for the new vessels in parallel with keeping up the operational tempo with ever older vessels. It is most welcome that the Navy leadership already at this early stage of the Pohjanmaa-project acknowledges this, and are making plans to handle this additional requirement.

The Hamina-class MLU this has also seen improvements in this regard. The cabins and berthings of both the sailors and the command have been revamped and moved, allowing for more space. In addition the crews will increase by a few persons, though mostly caused by new functions being added. However, the introduction of newer systems will allow for longer rest periods for the crew members. The ergonomics of the bridge has also been improved. Hopefully these changes will together play their part in lowering the workload aboard the vessels. However, for the Navy as a whole there is unlikely to be any quick fixes, but rather a long and dedicated process is needed to bring the workload down throughout the force. The signs now point to the work having begun, hopefully it will prove successful.

FNS Hanko escorting Kvitbjorn — FNS Hanko (’82’) showing the pre-MLU configuration with the large deck gun and small tower on the rear part of the superstructure. Here the vessel is escorting ro-ro ship Kvitbjørn as part of the buildup to Exercise Arrow 19, a mission that works well close to port and as long as there is no ice. Source: Merivoimat FB

As has been mentioned earlier, the Hamina-class post-MLU will be small but highly competent ships, employing many of the same sub-systems as their larger corvette sisters. The replacement of the large 57 mm deck guns with the smaller 40 mm Bofors in their truncated hexagonal trapezohedron-shaped turrets has freed up weight to allow for the Kongsberg towed arrays to be installed, something that together with the torpedoes (TP 45 for the time being, to be replaced with the NLWT/TP 47 in a few years) gives the vessels serious sub-hunting capabilities. The physical installation of the PTO 2020 (Gabriel) on the other hand proved a bit challenging, with the ceiling having to be raised and new doors being installed. This further underscores exactly how significant an improvement the new missiles has to be, as the RBS 15 Gungnir they beat would have been a drop-in solution when it comes to the physical dimensions. The vessels will get the same combat management system, the 9LV, as the Pohjanmaa-class, allowing for synergies in training and joint operations. The ITO 04 (Umkhonto) in their individual VLS-tubes remain the primary air defence weapon, but the Saab Trackfire has made it onto the rear part of the superstructure. Likely to be fitted with the NSV heavy machine-gun as standard, the remote weapon station allows for better close-range defence against small targets such as small craft, drones, or low and slow aircraft and helicopters compared to the earlier pintle-mounted versions of the same weapon.

Speaking of the Navy’s favorite RWS, the inclusion of two Trackfires on the Pohjanmaa instead of any dedicated hard-kill CIWS raised some eyebrows. The exact capabilities of the Trackfire naturally depend on the sensors and weapon carried, but I decided to place the hypothetical question to Saab: if the RWS carried a suitable weapon and was hooked up to a suitable sensor, would it be able to bring down incoming anti-ship missiles?

In an impressively long answer, the Swedish defence company explained that the system is “designed for very high stabilisation and fire control requirements”. This provide the system with “extremely good performance” when tracking and engaging airborne targets. However, it also notes that the system is set to receive new counter-missiles capabilities in the future, upgrades that will “commensurately increase” the system’s capacity for engaging incoming missiles. In short, Trackfire isn’t yet a mature CIWS-platform against incoming missiles, but the technical possibility is there. Another question is if the Finnish Navy is interested in getting yet another calibre in its arsenal, as the CIWS role would require at least a 20 mm gun, but preferably a 25 or 30 mm one. Something like the 30 mm M230LF could likely be fitted to the Trackfire, but it is questionable if the Finnish Navy would find such an integration project worthwhile. The more likely path is to continue with the NSV, and once the money is available fit a dedicated autocannon (likely as part of a future MLU, which would also include the fitting of a second Mk 41 VLS-module to increase the number of cells to 16).

pieni_PGG TORNIO MLU.JPG — FNS Tornio (’81’) with her new and significantly smaller deck gun. Also note some minor changes to the rear parts of the superstructure. Source: Merivoimat.fi

For the time being, the defence against incoming missiles rests largely on soft-kill systems based on electronic countermeasures and decoy launchers. This isn’t necessarily a purely budgetary decision, as the value of small calibre cannons against incoming missiles at high speeds have been questioned. In essence, if three tons of metal and explosives are hurling towards you at Mach 2, even if you hit it and break something you still have a good chance of getting hit by a lump of scrap metal weighing three tons and bringing a healthy dose of energy (around 706 MJ in our example) into your superstructure. Since that energy transfer is undesirable, having the missile go somewhere else in the first place is preferable.

And what about it being a frigate? To quote commodore Harju’s post:

Some of those who have recently analysed the class have stated that the Pohjanmaa-class corvette is the same size as a frigate and has almost destroyer-like weaponry. A frigate is generally understood as a vessel capable of operating in oceanic conditions […] For us in the Navy, more important than the orthodox definition of the ship class is the military capabilities of the vessels […] And finally, the Pohjanmaa-class is part of our defense system, meaning that evaluating the performance of an individual vessel does not give the whole picture of the vessel, nor the significance and impact of the acquired package.

Naval Defence Day 2018 – Only Change is Constant

On December 2, 2018December 2, 2018 By Corporal FriskIn Baltic Sea, Finland, Naval4 Comments

The annual Finnish Naval Defence Day was held a week ago, with the usual crowd of Naval officers, reservists, and stakeholders meeting up for a day of lectures and discussion on the current state of the Navy and its reserve, as well as topics of general interest to the crowd.

The Finnish Navy and the Baltic Sea

The year so far has seen the continuation of several of the programmes initiated earlier. Two Haminas are currently undergoing their MLU, with the other two awaiting their turn. The programme is largely on schedule, with the small delay in the PTO 2020 anti ship missile programme translating into a slight setback for the Hamina-upgrade. The other major new weapon system, the light torpedo, is on the other hand on schedule, with the first batch of Finnish Naval personnel currently in Sweden undergoing training. The training deal both with the particular system (or rather systems, as Finland first will lease and operate the current Torp 45 before switching to the acquired Torp 47 once they start coming of the production line), as well as general ASW tactics which is something of a new field for the Finnish Navy.

The New Lightweight Torpedo, still awaiting its Finnish designation, will provide a giant leap in Finnish ASW-capabilities. Picture courtesy of Saab Ab

For the Gabriel, the Navy remains as tight-lipped as they were when first announcing the decision. The message that Gabriel was the overall best performer in all categories was reiterated, with a comment that the fact that it did so at a very competitive price was an important additional factor. And while no new information was given, the excitement amongst the officer corps regarding the new system was palpable every time one brought up the topic.

Squadron 2020 is moving on slowly but steadily, with the contract date with the yard being planned for January/February 2019. This has dragged on a bit, due to the demanding situation of there being only one supplier. As this means there are no pressure on price and risk-taking from the competition, the negotiations have proved trickier than expected, but the Navy is confident that a good contract will be signed. For the combat management system the situation is more traditional with three suppliers shortlisted, and here the tender has been delayed a bit to be in lockstep with the shipbuilding negotiations. On the whole the project is moving along more or less as expected, the delays in signing the shipbuilding deal aside.

The inside of the TK 130 gun barbette during operation. It is the most modern turreted coastal defence gun worldwide and more survivable than generally perceived, but it is still approaching retirement. Source: Merivoimat FB

Past Squadron 2020 and the Hamina MLU further modernisation programs awaits. The 130 TK fixed coastal artillery will have to be replaced during the second half of the 20’s, and as some batches of the manportable short-range coastal defence missiles (Eurospike ER / RO2006) will start to reach the end of their shelf-life in the same timespan the Navy is taking a look at the larger picture when it comes to coastal defence and what possibilities there currently are on the market to replace the outgoing guns and missiles.

Another topic is new vessels, where the logistics of supporting troops in the archipelago holds its own challenges. One topic is how these smaller auxiliaries should be acquired, as the tendering process naturally differs from how corvettes and fast attack crafts are planned and bought. And speaking of buying fast attack crafts, on the horizon the first studies for the eventual Hamina-replacement are starting to take place.

The export variants of the 3M-14 land-attack and 91R1 ASW versions of the Kalibr-family. Source: Vitaly V. Kuzmin via Wikimedia Commons

But it is not only Finland that is actively modernising and practicing. The Russian Baltic Fleet is receiving new equipment, and the Baltic Sea is also home to many temporary high-end visitors when newbuilds are performing sea trials here. Amongst the systems mentioned by name we had the Steregushchiy-class corvettes and Project 636 “Kilo II”-class submarines, as well as the 3M-54 and 3M-14 Kalibr (which are the anti ship- and land-attack versions of the same missile) and the Redut-family of surface-to-air missiles. The Kalibr-family it was noted is in fact an issue for the whole of the Finnish Defence Forces and not the Navy alone, considering the fact that the range from Kaliningrad and the Barents Sea puts large parts of southern and northern Finland respectively inside the strike range of the ship- and sub-launched cruise missiles.

On the other hand 2018 has been largely uneventful in the Baltic Sea when it comes to major incidents, and while Russian activity remain at a high level, Northern Coasts 18 as an example took place without anything out of the ordinary. While the increased level of readiness has been taxing on the Finnish Navy, they are proud of their work in not letting any vessel move in waters “close to us” without being identified (no word on how far out the “close” reaches). To ensure this the Navy is employing a range of measures, including not only own vessels and sensors, but also cooperation with the Border Guards and the NH90 helicopters of the Army Aviation.

Unmanned technology underutilised?

Unmanned and autonomous systems was the main topic of discussion, with a particular focus on the utilisation of these technologies in the maritime domain. The rapid minituarisation and commercialisation throughout the field means that even smaller countries such as Finland are able to start investing in unmanned technology on a broader scale. It is also notable that this will not, or at least should not, simply lead to pulling people out of today’s systems and replacing them with computers. Rather a completely new set of options open up, with the ability to have platforms measured in centimeters and decimeters instead of tens of meters. Additionally endurance isn’t necessarily a limiting factor anymore, especially for surface and subsurface platforms which can wait and float freely for prolonged periods of time. On the other hand, even with improved machine learning and autonomy amongst machines, robots are still extremely good at handling a specific task or scenario but significantly poorer at reacting to surprises. As such we are increasingly entering an age where the human player is needed not for the expected tasks, but as the flexible element to take control when the unexpected happens.

Saab’s AUV62 AT is an underwater target which can mimic different submarines. As part of ASW exercises the AUV62 is let loose, after which it operates fully independently for several hours, relying on dead reckoning and reacting intelligently to enemy actions, all while recording everything that happens. Imagining a reconnaissance role for a similar system is not difficult. Picture courtesy of Saab

While drones currently are sub-systems rather than main systems, their revolutionary nature shouldn’t be underestimated. In the naval domain, getting a lightweight synthetic aperture radar up in the sky aboard a lightweight drone is suddenly a serious alternative to the traditional mast-mounted surface search radar, providing both over-the-horizon range and having the added benefit of letting the host vessel’s sensors remain silent. An interesting example is Israel who has retired manned maritime patrol aircraft and completely replaced them with remotely piloted ones.

On the other end of the scale we have commercial off-the-shelf systems which has seen use in both Ukraine and Syria both to provide targeting data, perform reconnaissance, and for direct attacks with grenades or fixed warheads (the later use starting to blur the border between UAS/UAV and cruise missile). In the Ukrainian case, the targeted attacks against ammunition depots have shown that simple and cheap system can take on operational/strategic roles (Yes, this is something that the Finnish Defence Forces have recognised in their current operational planning. No, you won’t get further details).

But while everyone recognises that unmanned systems are here to stay and will only increase in both numbers and importance, in many ways the final breakthrough has not necessarily taken place. Comparisons were made to the state of aircraft at the outbreak of the First World War, where no-one really knew what worked and what didn’t, but after a few years of fighting the air war had reached a form which it would keep for decades. Similarly, at the outbreak of the Second World War much of the technology that would transform the battlefield between 1939 and 1945 was already available, but only the outbreak of the war led to inventions such as the jet engine being rushed into service. Currently a number of unmanned technology demonstrators are making rather slow progress in getting into widespread use, partly because lack of funding, and partly because of questions regarding artificial intelligence and the authorisation of use of force. If a significant peer-vs-peer conflict would take place, it is likely that a rapid roll-out of these existing cutting-edge technologies into operational systems would take place.

The killer robots amongst us? Here PM04, a smart impulse sea mine in operational use by the Finnish Navy since well over a decade ago. Source: MKFI via Wikimedia Commons

But as we consider the moral implications of ‘killer robots’, are we just overlooking the developments that has already taken place? What is the principal difference between an autonomous armed UAV, and modern impulse mines? These have sensors and a certain level of logic allowing them to discern between targets, and once deployed they will fully autonomously perform their mission, no surrenders accepted. Did we actually deploy armed killer robots over a decade ago, without ever noticing?

Gabriel announced for PTO2020

On July 6, 2018July 6, 2018 By Corporal FriskIn Finland, Naval16 Comments

The decision on one of the most important weapon systems for the Finnish Navy has become public today with the surprise announcement that Israeli Aircraft Industries’ Gabriel has been chosen for the PTO 2020-contract. The PTO 2020 will be the main ship-killing weapon of the Navy, being used on the Hamina-class FAC and the Pohjanmaa-class corvettes (Squadron 2020) as well as from truck-mounted batteries ashore. As such, it will replace the current MTO 85M (the RBS15 SFIII, a customised RBS15 MkII). This also effectively kills alls speculation that there would be a joint anti-shipping weapon operated by the Navy and by the Air Force, as there seems to be no air-launched version available for fast jets.

First a short discussion regarding the designations: IAI never mention Gabriel on their homepage, but they do market the Advanced Naval Attack Missile, and most sources agree that this is the Gabriel V. The odd one out is CSIS, which lists two versions of the Gabriel V, of which the ANAM is a shorter-legged and newer version of the original Gabriel V, which instead is designated Advanced Land Attack Missile. Also, the version of Gabriel bought is not publicly confirmed by the Finnish MoD, but there’s few possibilities. My working hypothesis is that while there might be slightly different versions the missile most commonly described by the Gabriel 5 / Advanced Naval Attack Missile designations is in fact the one bought by the Finnish Defence Forces.

Screenshot 2018-07-06 at 10.10.03 — Probable Gabriel V launch from a Sa’ar 5-class corvette during Israeli SINKEX in 2016. Screenshot: IDF exercise video

Looking at the field, it was clear from the get-go that the big dividing line was between the IIR-seeker of the NSM compared to the traditional radar seekers of the rest of the field. Coupled with the stealthy body of the missile, this allows the NSM a completely passive approach. The phrase “they never knew what hit them” has never been truer. However, the world of physics also dictate that IIR-seekers perform worse in adverse weather conditions (snow, rain, fog, …) compared to radar ones, a serious drawback for any weapon designed to operate in the northern parts of the Baltic Sea. While Kongsberg always claimed that the NSM offers true all-weather capability, it has remained impossible to judge the true differences based on open sources. Also, the Finnish Defence Forces is known as being somewhat conservative when adopting new technology, preferring evolution over revolution. This became evident once again with the decision to opt for the tried and tested radar seeker, and notably stealth isn’t as important for a sea-skimming missile were detection ranges are extremely short.

The Gabriel has an interesting history. A month after the end of the Six Day War in 1967 the Israeli (ex-Royal Navy) Z-class destroyer was attacked without warning by three P-15 Termit anti-ship missiles from an Egyptian Project 183R Komar-class vessel sitting inside the harbour of Port Said. While tactical lessons of a WWII-vessel being hit by three missiles fired from inside a port basin might be discussed, it was clear for the IDF that a modern anti-ship missile was needed, and the Navy took over the failed Luz-program of surface-to-surface missile to produce what became the first version of the Gabriel. This proved to be an excellent weapon in the Yom Kippur War of 1973, where the Israeli Navy was the sole service branch to completely sweep the floor with the enemy.

The Gabriel missile was already once on its way out. Here the launcher of INS Mivtach, an ex-Israeli FAC currently a museum ship in Haifa which originally sported the Gabriel but changed to Harpoon from 1984 to its decommissioning in 1996. Source: Own picture

Development of the Gabriel continued, but by the mid-80’s the Harpoon was being introduced in Israeli service, and it looked like it spelled the end of the indigenous weapon. However, in a country famous for resurrections, death should never be taken for granted, and by the early years of the new millennium analysts where starting to question why Israel wasn’t upgrading their stocks to the new RGM-84L standard. Rumours started spreading about a new weapon being development.

The exact specifications of the Gabriel V are shrouded in secrecy, but it seems to be built according to generally the same form factors as the Harpoon. The first relatively confirmed sighting of the new weapon came two years ago, when a SINXEX involved the Israeli Navy firing a Harpoon followed by a new weapon. The stills are blurry to say the least, which seems to indicate a faster launch speed and/or worse camera than used to shoot the corresponding Harpoon launch. Another one of the few publicly available pictures/renders is found in this video, where an unspecified anti-ship missile is available as part of the IAI Skimmer-package for maritime helicopters. An air intake below the missile fuselage is found on the helicopter video but not visible upon launch in the SINKEX, but might be retractable or specific to the air-launched version.

On their homepage, IAI offers a few choice insights into the weapon. It does sport and active radar seeker, and while Israel has no archipelago whatsoever, they are situated close to one of the world’s busiest shipping lanes with the number of civilian and neutral vessels vastly outnumbering those of potential targets at any given time. This means that the missile should feel right at home in the Baltic Sea. The weapon also reportedly “copes with rapidly evolving tactical situation”, which can only mean that it sports a datalink.
It also “penetrates hard-kill defenses”, which likely is a cover phrase for end-phase maneuvering. From the video of the SINKEX the impact point low on the hull is visible, though it is impossible to tell whether the missile shown impacting the tanker is in fact the Harpoon or the Gabriel. On the cutaway it is evident that the weapon has a jet engine.

The size of the warhead is unclear. RBS15 sports an impressive 200 kg warhead, while Exocet sports a 165 kg one, the Harpoon ER has shifted down from a 220 kg to a 140 kg warhead, with NSM also having a 120 kg one. The question of what kind of destructive firepower is needed for the Navy to effectively stop the Baltic Fleet short in their tracks is an interesting one. In short, 200 kg of explosives going off won’t send a frigate or destroyer-sized target to the bottom of the Baltic Sea. A good example here is the attack on the Iranian 1,100 ton frigate Sahand. which was hit by five 220 kg warheads (including three Harpoons) and cluster bombs, and still floated for hours before fires reached the magazines of the ship. A common theme is that fires might however prove troublesome, as was seen with both the Swift, hit by an Iranian C-802 near Yemen, and the HMS Sheffield hit by a single Exocet in the Falklands war. In both cases the ensuing fires caused significantly more damage than the warheads themselves. In the case of the Sheffield, the warhead seems to have failed to detonate, but the impact put the main firefighting systems out of action, severely hampering the fire-fighting effort.

Screenshot 2018-07-06 at 10.02.44 — Probable Gabriel V in the leftmost picture. Screenshot from IAI marketing video

If I had to take a guess, the warhead size of the Gabriel is likely closer to 120 than 200 kg. However, it can be argued that A) vessels need not be sunk to be effectively put out of action, and B) the majority of the vessels of the Baltic Fleet are relatively small compared to blue water ships such as destroyers. Also, modern warheads do pack a larger punch compared to similarly sized ones dating back to the 80’s. All in all, the choice to downsize from the current warhead size probably wasn’t a major factor in deciding the lethality of the Finnish Navy

One thing that has potentially been seen as an issue for the Gabriel has been the lack of shore-based systems. While the technical difficulties of creating a new launching system by mounting the tubes on a truck aren’t overwhelming, the certification process still will require some additional funding. Apparently this still fit within the given cost/capability brackets, especially as the MoD states that the deciding factors have been “performance vis-à-vis acquisition costs and schedule, lifecycle costs and security of supply, and compatibility with existing infrastructure and defence system”. Notably the maintenance will be done in Finland.

The Gabriel was decidedly something of an underdog, but it is clear that the Navy went into the project with an open mind and looking for the best option instead of just continuing in the tried and tested tracks of the next RBS15. Following the Polish and German export orders for the RBS15, diversifying the anti-ship missiles of the western countries around the Baltic Sea is also a good thing, as this makes it harder for the Baltic Fleet to optimise countermeasures.

pikiwiki_israel_29171_missle_firing — INS Haifa (S322) firing an early Gabriel. Source: Nir Maor via Wikimedia Commons

The weapon also has a secondary land-attack capability, although the damage of the comparatively light warhead deals to any kind of hard target isn’t too impressive and the missile comes with a relatively hefty price tag. It could potentially have a role in taking out soft high-value targets, such as the kind of long-range radar systems. This demonstrates another case of a Finnish defence program moving into what the US likes to call ‘cross-domain’. In other words, joint capabilities where the ground, naval, and air domains interact over the boundaries to support each other either through kinetic effect or by providing targeting data for each other. As such, it does provide another part of the Finnish deterrence picture, further strengthening the ability of the Finnish Defence Forces to hit targets at long-ranges (most sources seem to agree upon at least 150 km range).

Imagine the following scenario: an HX-fighter identifies an enemy brigade headquarter being temporarily set up in the terrain close to highway E18, outside of the range of the Army’s long-range multiple rocket launchers. The maritime threat level is however low, and the Navy dispatches two Hamina-class FAC’s which in a few hours travel from their hiding locations near Örö, to take up positions west of Suomenlinna within the air defence umbrella created by the Army’s ground-based SAM systems covering the capital. From there they fire a salvo of PTO 2020’s, which strike the target 150 km east, not necessarily putting it out of action but dealing severe damage to it. While the missiles are still in the air, the Haminas retreat back to the safety of the cluttered archipelago, stopping for a refill of missiles at one of the several smaller ports found along the Finnish coastline. The whole operation is over well within 24 hours from that the fighter first spotted the target. That is cross-domains fires and joint capabilities.

Torped 47 – Steel fishes back into Finnish service

On May 1, 2018 By Corporal FriskIn Finland, Naval6 Comments

On the evening of 18 November 1942, three Finnish motor torpedo boats entered the Soviet port at Moschny Island (Fi. Lavansaari) and fired four torpedoes which sank the Soviet 1,700 ton gun boat Krasnoye Znamya at its moorings, after which they sped away unscathed. The daring raid is the high point in the history of Finnish torpedoes, and five years later torpedoes were effectively banned from Finnish use with the Paris Peace Treaty.

Like the case with guided missiles, the ban would in the end give way to Soviet weapon exports. In this case torpedoes reappeared on the (official) Finnish TOE with the acquisition of two Project 50 ‘Gornostay’ (NATO-designation ‘Riga’-class) frigates in the mid-1960’s, both of which sported heavy torpedoes (533 mm). The local renaissance of the torpedo was however cut short by the fact that the ships themselves weren’t overly successful, and importantly they were too manpower intensive for the small Finnish Navy. In the end, they were retired in 1979 and 1985 respectively.

Lightweight torpedo - image 2.jpg — Saab’s render of the NLWT in full ‘warpaint’. Picture courtesy of Saab

Now, while the heavy torpedo slowly gave way to the anti-ship missile as the premier weapon in ship-to-ship combat, the lightweight torpedo became the anti-submarine weapon of choice for most navies in the world. In Finland things were a bit different, mainly because of the shallow and constrained waters which dominate the northern shore of the Gulf of Finland. However, things slowly started to change with the introduction of ever more capable diesel-electric submarines and different kinds of midget submarines in the Russian Baltic Fleet. While running towards the enemy at speed and throwing depth charges might have worked against a Project 641 ‘Foxtrot’-class, it was very doubtful whether it would against more modern designs such as the current Project 877/636 ‘Kilo’ or the upcoming Project 677 ‘Lada’.

With these developments under the surface in combination with the Finnish Navy shifting more and more priority from defence against enemy amphibious landings/naval movements to protection of merchant shipping, it was clear that the ASW-capability needed a boost. There simply needed to be more ships capable of performing ASW, and they needed a longer reach to avoid being sunk outside of the range of their own ASW-weapons. Enter the second reintroduction of torpedoes into Finnish service, with the decision that the Hamina-class and the upcoming Pohjanmaa-class (Squadron 2020) would both get light torpedoes.

OK IMG_6968 Gimped.JPG — Håkan Ekström, Saab’s sales director for underwater systems. Source: Own picture

The choice of torpedoes was revealed early January this year, with the announcement that Saab’s new lightweight torpedo (NLWT) had been chosen. As a matter of fact, the torpedo is so new that it hasn’t got a company name yet. “There is a name in the works”, Saab’s sales director for underwater systems Håkan Ekström discloses. In the meantime, the Swedish Defence Forces has already named the new weapon Torped 47 (sans-o, as that’s how the word is written in Swedish).

That Finland would opt for the NLWT was rather unsurprising, considering that it is highly optimised for the kind of littoral environment that any Finnish submarine hunt would take place in. Compared to ‘blue waters’ (open seas), looking for submarines is vastly different in the Baltic Sea. Detection ranges, and combat ranges for that matter, can easily be much greater than the depth, leaving the combat taking place in what the product manager for torpedoes, Thomas Petersson, described as a “Thin slice of water”. This causes issues for active sonars, as in the oceans anything spotted by them is usually either a submarine or some kind of sealife. In the Baltic Sea, most echoes are simply coming from the seabed, leading to a more difficult discrimination problem. The water also has some interesting behaviors, part of which comes from the many rivers flowing into the sea. These bring fresh water of various temperatures and significant amounts of sediments into the sea, leading to sound waves in some cases experiencing refraction in two directions (see this short and nice primer on how different temperatures messes up submarine hunting). In short together with the cluttered seabed detection becomes difficult, leading to relatively short engagement ranges.

Saab’s answer is the NLWT, which sports a number of niche features which combine to address the problems of subhunting in littoral waters. To begin with the torpedo is wire-guided, meaning that the operator aboard the ship can easily control the torpedo throughout its course. This also allows it to be used like a forward-deployed sensor, in that the operator can use its active sonar to look for targets, at different depths, as the torpedo is happily moving towards the suspected submarine location. The torpedo also has a very low slowest possible speed, allowing it to run very silently, further increasing the effectiveness of its sonars (the torpedo can be fired in both active and passive modes). One crucial difference is that the active sonar is operating at a somewhat higher frequency than usual for light torpedoes, giving it better resolution on the sonar picture as a tradeoff for somewhat shorter viewing range. The torpedo also has a quick launch sequence and rapidly goes into stable running, to ensure that it doesn’t touch the bottom and can handle the earlier mentioned short engagement ranges efficiently.

The earlier Torped 45 being fired of a ship during an ASW exercise. Note the two unshrouded screws, the most obvious external difference compared to the NLWT. Source: Jimmie Adamsson/Försvarsmakten

For the technical specifications, NLWT is made out of aluminium, and sports a pump jet with a single rotating impeller and a stator in place of the earlier Torped 45’s two unshrouded coaxial counter-rotating screws. The battery has also been upgraded, with lithium iron phosphate (LiFePO4) batteries replacing the earlier silver-oxide. This allows the torpedo to stay launch-ready for longer times in the launch tube, which also functions as the plug-and-play storage tube. The launch tube also include pressurised air to eject the torpedo and a spool of the same wire as is found inside the torpedo. If the torpedo moves, the torpedo spools out wire, and if the vessel moves the launch tube spools out wire. This ensures that the wire stays stationary in the water after the first few meters of the torpedo run, making sure that it doesn’t tangle or break. In the case of a wire break the torpedo will either abort or continue in fire-and-forget mode, depending on the mode chosen before launch. After a torpedo has been launched, the whole empty launch tube is switched out to a new tube with a launch ready torpedo inside it. This switch takes around 15-30 minutes for a trained crew and doesn’t require any specific equipment other than a suitable crane to handle the load. As such, it could conceivably be handled at sea (sea state allowing). The used launch tube is then sent back to a naval base to be reloaded. The direct drive DC-motor together with the new batteries provide a range measured in “tens of kilometers”, the exact number being both classified and highly dependent upon the speed of the torpedo.

Lightweight torpedo - image 3 — The first prototype of the NLWT during tests at Motala. Note orange dummy warhead, wire being retrieved in the bucket aft of the torpedo, and the grey disc on top of the torpedo immediately behind the warhead which marks the location of the proximity fuse. Picture courtesy of Saab

The active sensor provides a detailed enough picture that it can measure the length of the target, and any major features such as the conning tower can be made out. During the run the torpedo maps all return echoes, run validity checks, and reports on valid targets. If allowed it will then intercept the closest valid target inside the search box, and in case of a miss it will re-acquire for another attack. The seeker has been used successfully during live-fire exercises against targets the size of midget submarines, and Saab is confident that it can handle these kinds of targets as well as regular submarines. An interesting feature is the anti-ship capability, and though the small warhead (Saab declines to give the size, but notes that most light torpedoes carry a warhead weighing “about 50 kilograms”) won’t sink any major surface units, it does punch above its weight in that it has a dedicated ASuW-attack mode going beneath the vessel and using an upwards-looking proximity fuse to detonate under the keel. The combined effect of the gas-bubble which removes the water that carries that part of the vessel combined with the impact of water rushing back to fill the hole is enough to literally break ships in two when employed by larger torpedoes, and while the NLWT won’t repeat that, it will most likely send any corvette limping back to base with the hull distorted and propulsion shafts out of alignment.

Part of this performance comes from the Swedish requirement to be able to use the torpedo from both surface ships, submarines, coastal launchers, and aircrafts/helicopters. For the submarines, the light torpedo plays an important role as a self-defence weapon, as well as for hunting other submarines. For the Hamina-class, they will sport a single fixed twin launcher on the rear deck, allowing enough space for the RIB-launch to remain in its current position. Looking at the future, the contract with Saab also include an option for the four Pohjanmaa-class corvettes, and everything points towards this option being exercised within the next year or so when the acquisition of weapons for the corvette program starts to take place.

The current Finnish contract for the torpedoes include the systems for the Hamina-class and an undisclosed number of torpedoes, as well as training at the torpedo research and development center in Motala. This is also where we are shown the first prototype of the weapon, which is just about to finish its part of the development program. The production of the units themselves, and prototype number two which is currently in production, takes place in Linköping. Deliveries to both Finland and Sweden will start in 2023, and FNS Tornio, the first of the Hamina-class to undergo MLU, will be ready to go to sea with the launchers fitted already next year. Notable is that the Swedish Defence Materiel Administration, FMV, is closely involved in the project and is the launch customer that has contracted Saab to develop a new torpedo. However, the Finnish contract with Saab does not include any research and developments, but is purely for production and supply (including torpedoes, hardware needed for their operation, documentation, and training). However, at the same time the Finnish Defence Forces Logistics Command, PVLOGL, has signed an agreement with the FMV regarding cooperation and loans of Torped 45 to cover the period 2019 to 2023 when the Finnish Navy will have torpedo capable ships but no torpedoes.

‘Borrowing’ something that is literally worth millions of Euros sounded a bit suspicious to me, so I decided to contact FMV to confirm that it wasn’t just a case of Saab spelling ‘leasing’ wrong. However, FMV confirmed that it is indeed the case that the Finnish Defence Forces gets to borrow a non-disclosed number of torpedoes for free, as long as they are used and maintained according to official documentation. The aim of this agreement is that Finland will be able to operate with the Torped 45 aboard FNS Tornio already next autumn. Part of why this generosity is bestowed upon the Finnish Navy is no doubt that torpedoes occupy a rather unique role amongst modern munitions in that after launch they can be retrieved (the training warhead sports a flotation device in the form a inflatable ‘balloon’), and after the wire has been respooled and the battery recharged they are good to go again. As such, this is quite different compared to e.g. borrowing artillery rounds.

However, another angle is without doubt the value for Sweden of having Finland as an operator of the same system. Not only will this offer benefits when jointly performing ASW missions as part of the Swedish-Finnish Naval Task Group (the SFNTG), but a second cooperation deal signed at the same time between FMV and PVLOGL concern the future of the NLWT. Under this the two nations will cooperate around the acquisition and continued development of the torpedo system. By creating these kinds of synergies the costs for operating and keeping the system up to date will hopefully be lower for both users, and the agreement also open up the doors for increased cooperation around the ASW-mission as a whole.

The first draft of the text and pictures, with the exception of those parts based on information given by FMV, has been provided to Saab for screening to ensure that no classified, export controlled, or company confidential information is included.

No Finnish Harpoon/ESSM-order (at least for now)

On February 7, 2018 By Corporal FriskIn Finland, Naval16 Comments

As the headline says, yesterday’s big news from the naval sector is not that Finland has ordered the Harpoon and/or the Evolved Sea Sparrow Missile (ESSM). In fact, what has happened is that the US offers for two major Finnish naval programs have become open knowledge. This happened as the US Defense Security Cooperation Agency has requested clearance for the sale of 112 RGM-84Q-4 Harpoon Block II+ ER anti-ship missiles (of which twelve are of the older RGM-84L-4 Harpoon Block II version which will be upgraded) and 68 ESSM missiles. These kinds of pre-clearances are not uncommon, and allow for a rapid deal following a (potential) procurement decision by a foreign customer (thanks to Aaron Mehta for providing insights about US export).

iwjcvnp — One of the latest renders, showing the refined corvette concept. Source: Finnish Defence Forces / Insinööriupseeriliitto

The background is two ongoing Finnish projects: the Pohjanmaa-class multirole corvettes and the PTO 2020 heavy surface-to-surface missile. The PTO 2020 will be found aboard the Pohjanmaa-class as well as replacing the current MTO 85M (roughly a RBS 15 Mk II) on the Hamina-class as part of their MLU as well as in truck-mounted batteries. As the MLU for the Hamina is very much underway already, the winner of the PTO 2020 will be announced during the first half of this year. I am still standing by my opinion that the RBS 15 Mk 3+ and the NSM are the two frontrunners, and would be somewhat surprised if Harpoon won the trophy (and even more so if the Exocet MM40 Block 3 did, though everything is possible).

The Pohjanmaa-class is still in the design stage, with the main contract(s) to be signed this year, and the building phase to start next year. The armament shown on renders include two quadruple mounts of PTO 2020 amidships, the new lightweight torpedo from Saab, the BAE/Bofors 57 mm Mk II deck-gun, and a battery of vertical launch system-cells (VLS). The two main VLS-systems on the market are the French Sylver and the US Mk 41 (a modernized version called Mk 57 is also available, and mounted on the Zumwalt-class). Both are available in different lengths, with the shortest Sylver, the A43 (an earlier A35 concept seems to have been dropped), being around 4.3 m long (or rather, high), and the shortest Mk 41 being 5.2 m long. The 8-cell module of the Sylver is also smaller and lighter than the corresponding 8-cell Mk 41 module, in part because the silos themselves are a few centimeters smaller. For a full run-through of the differences, see this post by the UK Armed Forces Commentary-blog, where the differences are discussed with a keen eye to the pros and cons for the British Type 26 Frigate.

essm_launch_m02006120700079 — An ESSM leaving a Mk 41 cell. Source: US Navy via Wikimedia Commons

Now, while some vessels, such as the current Finnish Hamina-class and the upcoming British Type 26, feature dedicated cells to their main air-defence assets, the VLS on the Pohjanmaa will likely be home to the ships main air defence weapons. This becomes evident as the ESSM offer is for the weapon quad-packed in Mk 25 modules, designed to fit the Mk 41-system. If the ESSM would be chosen, the Pohjanmaa-class would be by far the smallest vessel to feature the system. The decision to offer the Mk 41 is interesting, as there is a dedicated Mk 56 ESSM VLS-system if the sole use would be for the ESSM.

The ESSM is certainly a competent weapon, and shows what the Navy is aiming for. 8-16 cells with quad packs would provide for 32-64 medium-ranged missiles, a huge boost compared to the current 8 short-range Umkhontos found on the Hamina. While the Mk 41 is too big for the Hamina, the Mk 56 mean that half a dozen ESSM’s could potentially be fitted as part of the MLU if the Navy choose to go down that (unlikely) route. More interesting is that the ESSM could be fired from the Army’s NASAMS surface-to-air batteries, letting the Navy and Army use the same missile stock. The upcoming ESSM Block 2 will feature an active seeker based on that of the AMRAAM, and is potentially the version offered to the Pohjanmaa.

Interestingly, the AMRAAM-ER is a AMRAAM married to the engine of the ESSM, and no, I don’t know what exactly is the difference between an AMRAAM seeker married to an ESSM engine and an ESSM engine married to an AMRAAM seeker.

I am still inclined to believe that the Sylver might be the Navy’s preferred VLS due to the smaller footprint. However, as with the PTO 2020, we will just have to wait and see.

Hamina does the Classics

On January 29, 2018 By Corporal FriskIn Finland, Naval7 Comments

The question of the upcoming deck-gun for the refurbished Hamina-class FAC was cleared up today, as BAE announced a deal for four Bofors 40 mm Mk. 4 to equip the vessels of the class. This is in line with the original reports, and means that the vessels will retain an amount of gun-fighting capability post-MLU, an especially important feature considering the small magazine sizes of both the heavy anti-ship missiles as well as the Umkhonto surface-to-air missiles.

I’ll admit that the headline above is slightly misleading, as while the words “40 mm” and “Bofors” certainly are a classic combo, the Mk. 4 share little except the calibre with the classic Bofors L/60 of WWII-fame. In between the two, the Rauma-class FAC and importantly the Kataanpää-class MCMV (poised to stay in service alongside the Hamina) are both equipped with the Bofors 40 mm Mk. 2. This is based on the L/70 long version which is more or less a completely new weapon using a longer round (40 x 364 mm vs 40 x 311 mm) when compared to the original L/60. The L/70 first entered service in 1948, but has proven to be a solid design which is found in a large number of single- and twin-mounts in navies throughout the world.

40Mk4 — The Bofors 40 mm Mk.4 turret. Source: Courtesy of BAE Systems

The new Mk. 4 turret still rely on the same L/70 weapon, but apart from looking like a ball (or rather something like a slightly distorted truncated hexagonal trapezohedron, but let’s stick to ball for now), the nice thing is that it is able to switch between different kinds of round on the fly (up to 100 rounds can be stored in a ready to fire mode). Further improving the flexibility its ability to use programmable 3P rounds, which allows e.g. for precise air burst or armour penetration capability from the same round, the exact mode being set the instant before the firing takes place. Finland is now the third country to acquire the Mk.4 after Sweden (a single patrol vessel that underwent MLU, since retired) and Brazil.

In the meantime, work on the first vessel to undergo MLU, FNS Tornio (’81’), started right away after the deal with Patria was announced, and already by the 16 January Finnish public broadcasting company YLE was able to show pictures from Western Shipyards in Teijo which showed that the earlier 57 mm gun and most sensors and antennas had been stripped from the vessel. Interestingly enough, the CEO of Western Shipyards states that they secured the contract in close competition with Uudenkaupungin Työvene and RMC, the shipyard which is set to build the new Pohjanmaa-class (Squadron 2020). While the work would without doubt have provided valuable experience to RMC, it might very well have been hard pressed to finnish all four vessels before the first Pohjanmaa start to require full focus.

Saab Bound for Naval Grand Slam?

On January 5, 2018January 6, 2018 By Corporal FriskIn Finland, Naval8 Comments

As the modernisation of the Finnish Navy’s surface fleet continues, Saab has managed to secure two key contracts. Earlier, it was announced that Saab would provide the new anti-submarine torpedoes set to be fielded by both the modernised Hamina-class FAC as well as the new Pohjanmaa-class corvettes (Squadron 2020). In many ways this was the low hanging fruit for Saab. Not only is development of their new torpedo well underway with Sweden as the launch customer, it is also based on proved technology in the form of the earlier Torped 45, making it possible to operate the older version from the installed tubes until the new Torped 47 is ready. Perhaps crucially, it is one of few weapons of its class designed with an eye to use in littoral and brackish waters, key features of the operating environment of the Finnish Navy.

PCG Hamina 2015 — Leadship of the class, FNS Hamina (’80’) two years ago. Note forward 57 mm main gun, roof-mounted CEROS 200, and 12.7 mm NSV heavy machine gun behind bridge. Source: Merivoimat FB

This week Saab landed a bigger fish, as it was announced that they will provide the combat management system, fire-control system, integrated communication systems, as well as optronic sensors for the Hamina MLU. The odd bird out is the fact that the order include the CEROS 200 optronic sensor, which is already fitted to the vessels. Either these are worn out to the extent that buying newer is cheaper from a maintenance point of view, or there have been internal upgrades of the CEROS 200 since the original deliveries almost twenty years ago that have not been reflected in the name of the product, but are extensive enough to warrant buying complete units and not simply giving the CEROS its own MLU.

Another interesting inclusion is the Trackfire remote weapon station, with the Hamina now being the third class in the Finnish Navy to receive the RWS. The use of the Trackfire on the Hamina isn’t specified, but the wording in the press release does seem to indicate a single system per ship. As such, while it is possible that two stations per vessel will replace the port and starboard manually operated 12.7 mm NSV heavy machine guns mounted amidships, the likelier scenario is that they will take the place of the main armament. There has been talk (so far unconfirmed?) that the main 57 mm guns (Bofors Mk 3) of the Hamina vessels will be removed as weight saving measures and transferred to the four Pohjanmaa-class vessels, and this would fit right in. While the Trackfire is usually seen fitted with a heavy machine gun as the main armament, it is capable of holding “lightweight medium calibre cannons”, i.e. weapons up to and including low-pressure 30 mm ones. This is not an unheard of solution, with e.g. the Israeli Typhoon RWS being used with a number of the different Bushmaster-series of cannons as the main or secondary gun on a number of different naval vessels out there. A 30 mm Bushmaster, the Mk 44, is already found in Finnish service on the CV 9030 IFV, but before anyone gets too enthusiastic it should be noted that this uses a longer high-pressure round, so there is no synergy to be had. Instead, something like the M230LF, based on the chain gun found on the Apache helicopter, is the more likely candidate.

Dropping down in calibre from 57 to 30 mm is not necessarily a bad thing, as the main use of the weapon will likely be air defence and intercepting light craft. Modern 30 mm rounds will do quite some damage against soft targets such as warships as well, though naturally you won’t win a gun fight against a large vessel sporting a 3 or 5 inch gun anytime soon (to be fair, if you find your FAC up against a destroyer at gun range something has likely gone very wrong already at an earlier stage of the battle).

13266107_825964914203716_103010983375369993_n — Jehu-class landing craft with a Trackfire RWS on top of the superstructure. For the landing crafts the usual mount is either a 12.7 mm NSV or a 40 mm GMG, with a 7.62 mm PKM as a co-axial weapon. Source: Merivoimat FB

At the heart of the Hamina order is the 9LV, an open architecture system which allows integration of different sub-systems, sensors, and weapons into a single integrated package. As such, different building blocks can be integrated into CMS systems from other manufacturers, or other manufacturers’ subsystems can be integrated into the 9LV CMS. That Saab gets this kind of a complete deal including both the CMS, FCS, integrated communication systems, and part of the weaponry is significant, especially when looking towards the soon to be decided contract for a main systems integrator for the Pohjanmaa-class, a job which will likely be of significantly higher value than the Hamina MLU.

The main implications is that this makes Saab the front-runner for the Pohjanmaa-class CMS. Earlier the Rauma-class FAC received the 9LV during its MLU, and now on the Hamina 9LV is replacing Atlas Elektronik’s ANCS 2000-system. While the requirements for the CMS of the Hamina and the Pohjanmaa are not completely identical, there certainly is something to be said when the former replaces one of the shortlisted CMS’s with the another one, instead of simply upgrading it. It should also be remembered that several subsystems, including most weapons, will be the same for both vessels.

Yet another noteworthy development is that Saab recently announced a new fixed face version of their Sea Giraffe, in the form of the Sea Giraffe 4A FF. I have earlier questioned whether Saab’s twin rotating mast solution would satisfy the requirements of the Navy, and it seems clear that the 4A FF is a possible solution for the Pohjanmaa’s main long-distance sensor. As Saab is also well positioned to secure the order for the new PTO2020 surface-to-surface missile, they just might be on track to secure all major Finnish naval contracts they are bidding for.

18699896_1058538577613014_610446093282984977_n — FNS Pori (’83’), the newest of the four Hamina-class vessels, underway. Source: Merivoimat FB

Meripuolustuspäivä 2017 – Maritime Defence Day

On November 12, 2017November 12, 2017 By Corporal FriskIn Finland, Naval1 Comment

The annual Finnish maritime defence day jointly arranged by the Navy and the Naval Reserve took place in Turku this year, and with a record-breaking audience. The program followed the established form, with lectures on the state of the Navy and the Reserve, as well as a panel discussion on current topics. On the whole, the Baltic Sea has become more important strategically and militarily over the last decade, but the current year has so far been relatively calm when compared to the last few ones.

Vice admiral Veijo Taipalus, commander of the Finnish Navy. Source: Own picture

As readers of the blog all know by now, the Navy is living in exciting times. The Pansio-class MLU is finishing up, after which the focus will shift to the MLU of the four Hamina-class fast attack craft. As has been reported earlier, the vessels will gain a serious anti-submarine capability in the form of light torpedoes. The big problem is still their lack of endurance and a room for growth, and I haven’t seen an answer to whether the needed ASW sensors and weaponry can be carried together with a full complement of missiles. The limited ice-going capability also won’t be going anywhere, which nicely brings us back to Squadron 2020 and it’s design.

Some ask if it’s too big for our archipelago.

It isn’t.

The noteworthy thing about the project was in many ways the lack of any spectacular news, in that everything seems to be fine. The acquisition enjoys broad political support, and is moving on according to schedule. This in turn means that the upcoming year will bring quite a number of interesting developments, with a number of key contracts awaiting awardment as well as procurement decisions to be made. Bigger news was perhaps last week’s speech by the chief of defence, general Lindberg, who noted that the Navy’s identified need was for six to eight vessels. Still, I won’t be holding my breath for a political decision to increase the size of the project.

The coat of arms of Pohjanmaa, here seen on the walls of Heikkilä *sotilaskoti,* will soon grace the first SQ2020-vessel. Source: Own picture

In the mid-term, the last fixed coastal guns are closing in on their due date. The 130 TK is a highly advanced weapon for it’s class, with a surprisingly high level of protection thanks to being embedded in the granite of the Finnish archipelago. Still, there’s no way around the fact that their fixed positions hamper their survivability. Following their eventual retirement there will be a gap between the long-range surface-to-surface missiles of the ongoing PTO2020 procurement and the short-range RO2006 (Eurospike-ER). Exactly how this firepower gap for intermediate range and/or targets of medium size will be solved is still open, though it was noted (without further details) that there are some “impressive capabilities” found amongst modern anti-tank missiles. Might this be a reference to the Spike-NLOS as a replacement for the 130 TK? The quoted range of “up to 30 km” isn’t too far off from that of the 130 TK.

Like the rest of the defence forces, the Navy is placing ever bigger importance on international cooperation. Sweden, being the main partner, received considerable praise, but also the increased cooperation with other Baltic Sea States was noted, with Estonia being singled out as a partner of growing importance. Next year’s main focus is obviously the major international exercise Northern Coasts, or NOCO18, which will be hosted by Finland during the autumn. Turku is the main base of operations, and will also host the main event earlier next year when the Navy celebrate its centennial.

Second after readiness, NOCO is the main focus of the Navy at the moment.

For the Naval Reserve, things are moving on in a steady but unspectacular fashion. The umbrella organisation itself celebrated 20 years in 2017, though several of the member organisations outrank it in seniority. Oldest is the Rannikkosotilaskotiyhdistys, responsible for the soldiers’ canteens of the Navy, coming in at a respectable 99 years.

Rannikkosotilaskotiyhdistys has saved the day for many a young conscripts with a cup of coffee and a *munkki* (sweet doughnut). Their work for maintaining the morale of the troops should not be underestimated. Source: Own picture

Originally modelled after the German Soldatenheim, the Finnish sotilaskoti have been around since the very early days of independence, and the naval branch got deservedly decorated for their stellar service to the Navy and its servicemen and -women.

In the end, it’s probably good that we haven’t got anything more exciting to tell you about…

Until next year!

Naval Air Defence – The Finnish Way

On May 26, 2017May 26, 2017 By Corporal FriskIn Naval2 Comments

One of the signs of spring in Kokkola is the arrival of a small flotilla of naval vessels to the local port. Seeing the Finnish Navy operating in the northern parts of the Gulf of Bothnia is uncommon, as all three main formations and the Naval Academy are based along the southern shores of the country. What brings the Navy here is the spring edition of IPH, the twice annually held air defence exercise where the Navy join the Army and Air Force in practicing the whole chain of modern ground-based air defences. This starts with creating situational awareness for the air defence network, and ends with the use of appropriate weapons systems engaging the targets. This year, minelayer FNS Uusimaa (‘05’) lead fast-attack crafts FNS Tornio (‘81’) and FNS Hanko (‘82’) into the port of Kokkola on 17 May for approximately a week of intensive exercises.

Uusimaa (3).JPG — FNS Uusimaa (‘05’) at dusk. Source: @JHggblom

Contrary to a number of other navies which operate dedicated air defence ships, air defence isn’t one of the Finnish Navy’s core tasks. Rather, the ability to protect the own vessel and nearby ships is needed to be able to perform other tasks, including escorting merchant shipping but also naval missions such as mining. Currently, the two Hämeenmaa-class minelayers and the four Hamina-class FAC all feature the same Cassidian TRS-3D radar and a VLS-battery of eight Umkhonto-IR (local designation ITO 2004) short-range IR-homing missile. As noted, half of the Navy’s ships with an air defence capability took part in IPH117.

But the air defence mission starts long before the missiles are let loose. The naval vessels, perhaps somewhat surprisingly, play a significant role in peacetime air policing. The TRS-3D are respectable sensors in its own right, and on the vessels they are backed up by other systems and sensors which make the vessels able to make considerable contributions to the Finnish air picture. The Navy maintain alert vessels 24/7 as part of their policing of Finnish maritime areas (as has been demonstrated), and an added benefit is that these are able to contribute sensor data regarding air movements as well. Here, the older Rauma-class and the Border Guard’s flagship VL Turva are also able to lend a hand, as while they aren’t armed with SAM’s, they still sport search radars (TRS-3D in the case of Turva, while the Rauma-class is equipped with the Saab Sea Giraffe 9GA 208, a relatively old iteration of the Giraffe-family).

There are a number of features which make the Navy punch above its paper stats when it comes to contributing to the air defence and air surveillance network. One is the fact that the vessels are further south than any radars found on the mainland. This is especially valuable for any air traffic coming from the direction of the Baltic Sea, where the Navy can be assumed to be the first one to pick up any movements. Another thing is the mobility offered by the platforms, with the ships being able to travel at speed, up to 30 knots (55 km/h) for the Haminas, while constantly emitting. Compared to ground-based radars which need to be lowered for travelling and set up again at their new location, this eliminates the gap in information that takes place when changing position. The other is the high readiness of the Navy compared to the Army’s air defence units. The vessels not only bring their complete sensor package with them. They also bring the command central, battle management tools, and firing units with them. The vessels need to be able to not only fight as part of an integrated air defence network, but they also need to be able to solve any of their missions independently in case communications with higher command suddenly goes down. This means that the vessels are able to not only see what is up in the air, but also to take independent action against any threat at a moment’s notice.

Tornio & Hanko II.JPG — FNS Tornio (‘81’) left and FNS Hamina (‘82’) right. Source: Own picture

Being able to actually shoot down anything naturally requires that they are sailing around with the missiles loaded, something which the Navy does not comment upon. One of the benefits of the VLS is in fact this ambiguity, as an external observer is unable to tell how many weapons are carried (the same is the case with internal carriage on fighters, feel free to ponder upon this as an issue for HX).

From an air defence point of view, the six Umkhonto-equipped vessels are in effect mobile surface-to-air missile batteries with their own search radars (though with a very limited number of missiles), maintained at a high level of readiness and staffed (almost) exclusively by professionals. This makes them well-suited as counters to a Crimea-style coup attempt, where they together with the Air Force would counter airborne movements in the opening stages of a conflict before the ground based batteries have had time to mobilise and set up.

FNS Uusimaa (‘05’) firing an Umkhonto-IR short-range surface-to-air missile during IPH117. Source: Merivoimat

The introduction of Squadron 2020 will further strengthen the Navy’s role in the joint air defence network. New radars and sensors, and getting access to mounting them higher as a benefit of the larger vessel size, will offer better situational awareness, and while the exact surface-to-air weapon fit is still undecided, it seems highly likely that the missiles will be of a greater number and capability than the current vessels have. What is also often forgotten is that while the overall number of surface combatants will go down from eleven to eight, the number of air defence capable vessels will in fact go up from six to eight.

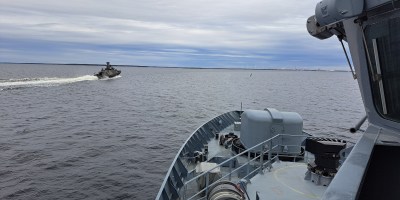

While the Navy might see air defence as something of a necessary evil, something that one needs to do to be able to perform the core missions, that doesn’t mean it is a mission taken lightly. Compared to mining operations where time is calculated in hours and days, air defence is a question of seconds and minutes. The demanding nature of it means that it needs to be trained properly, and nowhere in Finland is the training environment better than in the Bothnian Gulf during the last weeks of May. The importance placed on the mission is seen by the fact that the Navy dispatched three vessels for a week, vessels which barely have time get back to Pansio for a quick turnaround before heading out to sea again as part of this spring’s main coastal defence exercise, exercise MTH-17 Lyydia.
