A Catalogue of Arms: The Weapons of the HX-project

A subject which I’ve touched upon in my earlier posts, is the fact that the choice of fighter for HX also largely dictates which weapons the Finnish Air Force will use. Naturally, any weapon can be certified on any fighter, as long as they are within weight and size restrictions, but the process is neither simple nor cheap. As such, the large operators usually call the shots, their choices usually being domestic weapons suitable for the missions they prioritise. There are also a number of special cases, such as e.g. Saab and Boeing producing both aircrafts and some of their weaponry.

So, what would Finland then get with each of the different HX-candidates? Below is a simple table I’ve collected, with weapons integrated on each aircraft. The weapons are divided by type, and include both weapons currently available as well as planned weapons. For the future weapons I’ve only included weapons that the manufacturer or operator states will be integrated (edit: note that some of these planned integrations, especially in the case of the F-35, are still unfunded). The exception is for Gripen, where the Brazilian Air Force has not yet disclosed which weapons they’ve chosen for the aircraft. In this case, the weapons listed are based on those displayed on the mock-up, when it toured in Brazil this spring.

Some weapons are likely to appear on certain aircraft sometime in the future, such as the Meteor being integrated on the F-35, but as long as these aren’t officially confirmed, I’ve left them out. As said, if Ilmavoimat really wants something, it can most probably be added for an extra cost, but this table is what we would get “for free” with each aircraft.

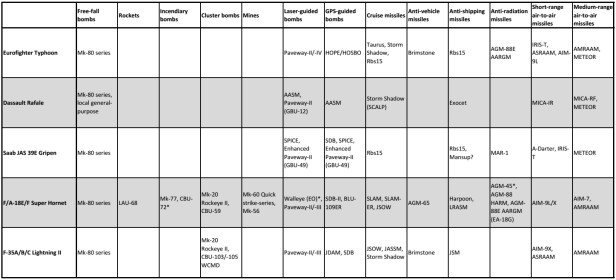

HX-weaponsA few comments:

Incendiary bombs are largely similar to napalm, but aren’t called that as their chemical composition is different. Cluster bombs are available in a number of different variants, where the Mk-20 (247 submunitions) is meant for anti-tank work, and the CBU-59 (717 submunitions) and CBU-101/-105 are used against ‘soft’ targets (unarmoured vehicles, troops). Many of the modern laser- and GPS-guided bombs feature wings, which means that they can be dropped from some distance, and then glide towards the target. Cruise-missiles differ from these, in that they have some kind of engine that lets them fly further than the unpowered glide bombs. Some cruise missiles can also be used as anti-shipping missiles, and the other way around. As sending a large cruise missile dimensioned to blow up a reinforced bunker to take out a single tank is a waste of money and explosives, some planes carry smaller missiles that can be used against vehicles. Anti-radiation missiles are specialised weapons made to home in on enemy radars, to knock out the enemy’s groundbased air defences.

The Eurofighter reflects its international pedigree in that some nations, especially Great Britain, want their own weapons on it, and as such it has two options in a number of slots. The Rafale is an example of the opposite, featuring almost exclusively French weapons. Due to their small production runs, these are sometime very costly, with e.g. the AASM (the French equivalent to a JDAM) rumoured to cost up to twelve times as much as its US counterpart.

A British Eurofighter Typhoon featuring 1,000 lbs Paveway laser-guided bombs and air-to-air missiles taking off during operations over Libya. Source: Wikimedia Commons/Sgt Pete Mobbs/MOD

Gripen features an interesting mix of Brazilian and European weapons. Of note is that if Finland would buy the Gripen, we would be one of the larger operators, giving better leverage if we wanted to integrate new weaponry onto it (this is not to say that they would come for free, only that our leverage would be better). The main drawback of the Gripen is the (current) lack of a dedicated anti-vehicle missile, with earlier versions having featured the AGM-65 Maverick.

Edit 24-07-2015: After having received input from Twitter-handles Gripen News and Obby Noxus, I’ve updated the table and texts accordingly. Sorry for the incorrect data given earlier, it was completly due to my own fault, and thank you to Gripen News and Obby Noxus for their help!

With regards to the F/A-18E/F Super Hornet, it seems like the US Navy decided to simply certify the aircraft for more or less every weapon in their arsenal. A number of these, marked with *, are already retired, and others are on their way out (such as the AIM-7 Sparrow). Of interest is that it is the sole platform with a mining capability. The ability to have two aircraft take off and after a few minutes close a strategic sea lane by dropping four heavy sea mines would be of marked value for Finnish defence planning, especially with the reduction in hulls with a mining capability that the navy is facing. In fact, it is interesting that the Finnish Air Force has not bought Quick Strike mines for the current Hornet-fleet, as they are also certified to carry it.

The F-35 is something in between, with a number of different options, although not quite as many as the Super Hornet. Its anti-shipping missile is a bit special, the Norwegian Joint Strike Missile featuring an infrared seeker instead of radar as all the others anti-shipping missiles in the tables. The IR-seeker is harder to distract than radar seekers, but feature a shorter range a poorer performance in adverse weather (rain, snow, and fog).

Does any single aircraft then have a marked advantage? I would say no. The Rafale is at a disadvantage, due to its reliance on uniquely French weapons, with their higher cost and poorer availability. The Super Hornet brings some interesting options to the table, but I find it hard to believe that Finland would buy either rocket pods or incendiary bombs, so the only real difference is the sea mines. The overall differences are small, and if mining capability suddenly is a must-have, it could probably quite easily be integrated on any of the other platforms. In fact, I would imagine that the US Navy is already thinking about getting it for the F-35C.

As is the case with the aircrafts themselves, their weapons suites all have their own strengths and weaknesses. In the end, these are but one of the many factors that will have to be compared and judged, before it can be decided which of the potential HX-fighters is the best choice.

2 thoughts on “A Catalogue of Arms: The Weapons of the HX-project

  1. Kristian

    As far as I can tell you seem to have excluded some weapons for the Gripen that are in use today or integrated but not purchased by the SwAF. Examples are the Taurus cruise missile (integrated), AMRAAM (in use), AIM-9 (in use) and Paveway-II (GBU-59 in use).
