The Finnish Army recently took delivery of the first of four Protolab PMPV which have been ordered for operational testing. I wrote about the contract back when it was signed, and the short version is that the AMV might be the best of the best, but it is too expensive to be the wholesale replacement of the Finnish fleet of XA-180/200 series of 6×6 APCs which make up the majority of the Finnish Defence Forces’ protected mobility.
But the PMPV, or Misu as it is also referred to, is not unchallenged when it comes to replacing these APCs. Patria, the manufacturer of both the XA-series and AMVs, recently launched their take on a modern but affordable 6×6 in the form of the Patria 6X6. It might be as close to ungooglable as a modern vehicle gets, but the solid pedigree and the company’s long history of close cooperation with the Finnish Defence Forces shouldn’t be underestimated (full disclosure: I work for KONGSBERG Maritime Finland Oy, whose parent company KONGSBERG Gruppen ASA owns a significant stake in Patria).

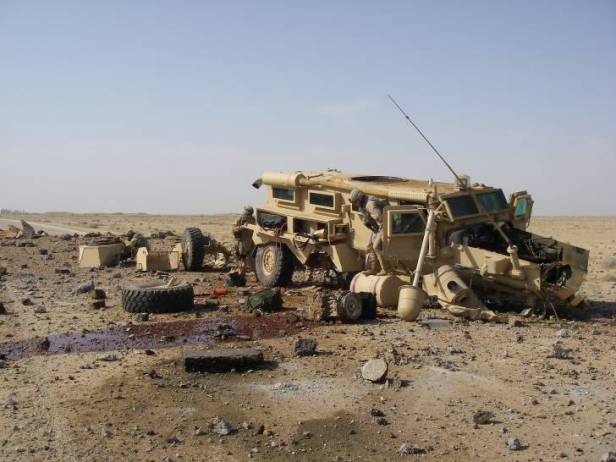

But while the 6X6 is a logical next generation development of the XA-series, the PMPV offers a refreshingly new take. It is often referred to as a MRAP, Mine-Resistant Ambush Protected vehicle, after the US military program that created thousands of protected vehicles to deploy to Afghanistan and Iraq to improve the level of protection that US (and allied) forces enjoyed when faced with a growing threat from IEDs and ambushes that included anti-vehicle and anti-armour weapons. It is true that the PMPV employ several of the design features included in the program, such as placing the front wheels in front of the driver’s cabin and a high and heavily angled V-hull. However, other design features borrow more heavily from traditional APCs or all-terrain trucks.
The last part is important. Besides the future requirement to replace the XA-series there is a seemingly growing requirement that missions currently handled by unarmoured trucks will have to be taken over by protected vehicles in the near to immediate future. These include transport of soldiers outside of the immediate combat area and logistics transportations. If this is to be implemented, it naturally raises the number of armoured vehicles needed even further, putting pressure on the cost.

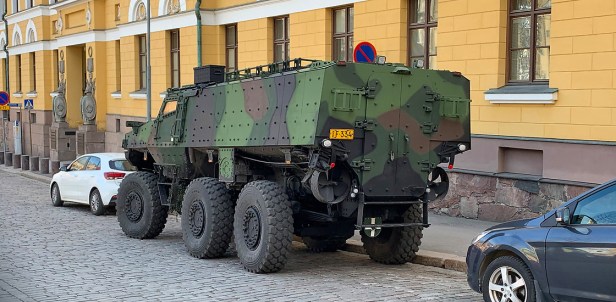

On paper both vehicles emphasise many of the same points, including use of commercial off the shelf parts and solutions, modularity to adapt the vehicle for different roles, the ability to up-armour the vehicle to higher protection levels, and the ability to mount different kinds of weapons solutions. However, the different design philosophies shines through in the external measurements: the PMPV is only 2.5 meters wide, something that together with steering on the front and rear axles allows for a (relative to its size) very nimble vehicle. On the flip side the raised hull and MRAP pedigree causes it to be 2.7 meters high. The 6X6 is on the other hand only 2.5 meters high, but 2.9 meters wide. On the battlefield those 20 centimeters in height might make it harder to find cover, but on an ordinary road or in an urban environment having a vehicle 40 centimeters narrower means the difference between driving a truck-sized vehicle or an oversized one. The height might also be the biggest downside when used as a cargo carrier, with the floor level rather high above the ground and the door opening being relatively narrow.
Interestingly enough, both vehicles are closely matched when it comes to max weight, tipping the scale roughly at 24,000 kg. However, an empty PMPV comes in at just 14,000 kg, allowing for 10,000 kg of cargo (in addition to fuel). This gives it a measurable edge over the 8,500 kg of cargo the 6X6 can handle.
Another significant difference is the powertrain, where the PMPV relies on a 213 kW Cummins diesel as opposed to the 294 kW Scania of the 6X6. Having 38% more power likely is significant when venturing off-road with a full cargo load, but also comes at a cost in terms of pure Euros. Without having seen any comparative trials it is hard to tell if this is a case of good-enough coupled with a cheaper price tag beating raw power, but Protolab is confident:
My personal opinion is that we have succeeded very well. The car [sic!] has received excellent feedback from people who participated in the test drives, both from FDF personnel and others. Its mobility off-road is top notch.
It is somehow telling that the company refers to it as a “car” (fi. Auto) rather than the more official “vehicle” (fi. Ajoneuvo) generally used about APCs in the FDF. It certainly tells something about the ease of handling.
In the end, it is hard to say for certain what the future holds for the PMPV, or for the Patria 6X6 for that matter. It is no secret that the Finnish Army faces a headache where several different vehicles, including not only the APCs but also vehicles such as the MT-LB-families and older articulated all-terrain vehicles (NA-series and older BV-206), will need to be replaced. The changing face of the battlefield, such as the increased use of thermobaric warheads and loitering munitions, also raises questions about what should be the protection level of vehicles used in different roles. It is likely that the look of many units, especially regional and maneuver units in the FDF, will change significantly in the next two decades, and e.g. replacing tracked vehicles with another tracked vehicle won’t necessarily be the case. From a customer point of view, the luxury of having a choice between several domestic products is certainly a big plus, especially as they provide different design solutions to the same basic need. Added to the mix is also the slightly smaller 4×4 Sisu GTP, which recently won a Latvian contract (the decision has since been nullified in a court battle). In the end, it seems likely that the Finnish Army will continue to roll out protected by Finnish armoured vehicles once the XA is retired. But what company builds them and how ubiquitous they will be remains to be seen.
