Reach out and touch someone – at 40 km

While the Finnish Navy is undergoing a visible transformation with the acquisition of the Pohjanmaa-class corvettes and the Hamina-class MLU, away from the headlines an era is about to end. The Finnish Defence Forces had the luck of inheriting the unfinished but still impressive Peter the Great’s Naval Fortress when the country became independent in 1917, making it a major player in fixed coastal artillery. But now the end is approaching for the 130 TK, the last fixed guns of the country.

The glorious life of a gun crew on the 130 TK. Source: Merivoimat FB

The 130 TK is the mid-sized coastal defence system in Finnish service, wedged between the MTO 85M (RBS 15, to be replaced by PTO 2020) and the RO 2006 (Spike ER). Being the sole artillery system, it has a few unique features compared to the missiles.

Artillery observers directing fire from the 130 TK during exercise Silja earlier this year. Source: Merivoimat FB

The most important difference is cost of the rounds. Modern artillery rounds aren’t necessarily cheap, but they’re certainly cheaper than missiles. They also provide the ability to target vessels where a PTO 2020 might be overkill (such as minehunters, landing craft, and small auxiliaries), and to maintain suppressive fire over prolonged time (both against vessels and against units that have come ashore). A key feature is also the ability to fire a warning shot, something that might come in handy in a ‘hybrid’ scenario where you don’t necessarily want to put a missile in a suspicious vessel. However, the Navy has let go off their towed systems, meaning that replacing the 130 TK with mobile artillery would require reintroducing the artillery branch in the Navy (or asking really nicely if the Army would have a few wartime batteries to spare). The Navy’s standing comment is that they are still looking at all alternatives, including both missiles and artillery.

But where better to ask about what those alternatives can be than at AMBLE Baltic?

The new Nammo 155 mm extended range family. Already in Finnish service, might it be the kind of versatile low-cost solution that the FDF loves? Picture courtesy of Nammo (all rights reserved/media license)

First stop is Nammo’s booth. The Norwegian/Finnish company is a well known supplier of artillery to Finnish heavy guns, and the company representative is happy to discuss the potential of using 155 mm rounds for coastal defence. While the mission isn’t part of the current mission set, “there’s lots of possibilities”. This includes not only extended range HE-rounds which push 40 km with base bleed from a L/52 gun, but also rocket-assisted projectiles with 70+ km range from L/52 guns as well as different kinds of precision guidance kits. Against a target such as a vessel 7 kg of explosives from a RAP round might well be plenty enough to achieve at least a mission kill. Fire direction against a moving target will present some challenges, but Nammo is certainly interested in having a go at it. Or as the company representative sum it up:

It’s worth having a look at.

But if Nammo isn’t in the coastal artillery game at the moment, two tables away is someone who is. Eurospike GmbH supply the Finnish Navy with the Spike ER (RO 2006) for the coastal defence role, as well as the Finnish Army with the Spike MR and LR for the anti-tank role (as the PSTOHJ 2000 and 2000M respectively). The oldest batches of the RO 2006 are approaching the end of their shelf-life, which brings a further twist to the 130 TK replacement. The RO 2006 has a range of 8 km, and the logical follow-up is currently in qualification.

RO 2006 being fired during exercise Silja. Source: Merivoimat FB

Spike ER2 adds another two kilometers of range and non-line of sight ability compared to the current ER. The seeker head is also able to use both the IR and the daylight mode simultaneously, making it harder to spoof the tracking. The anti-tank warhead is also promising 30% higher penetration, something that is largely of academic interest for the anti-ship role. While not directly discussing the coastal defence role, the company representative confirm that they are in discussions with the Finnish Defence Forces regarding new anti-tank concepts for all ranges. The Spike does have a trump card, as it makes it “possible to have everything in one family”. A dual-Spike solution for the Navy could potentially be in the cards, with the Spike NLOS allowing for 30 km range currently, and “more in a few years”. There’s also “solutions for even higher ranges”, but the company won’t go into further details as to what those are. Eurospike also notes that the coastal defence role might require a lighter solution than the current vehicle-mounted NLOS platforms, and suggests that UGVs with NLOS might be a suitable concept.

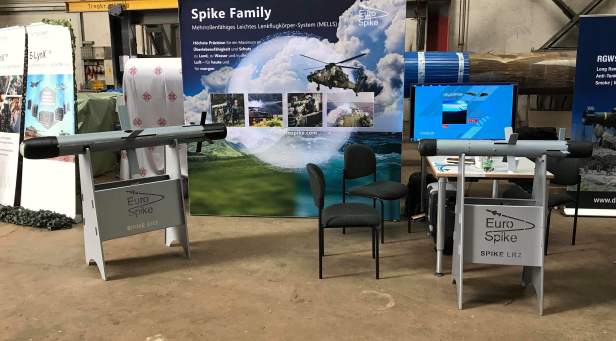

The size difference between the Spike ER2 (left) and the LR2 (right). Source: Own picture

Could Eurospike score a missile grand slam with more and newer anti-tank missiles to the Army and a dual-buy of ER2 and NLOS to the short- and medium-range coastal defence needs of the Navy? Possibly, but the introduction of NLOS would require quite a bit of new infrastructure in the form of suitable transport vessels to get the missiles moving in the archipelago, somewhat leveling the playing field compared to the investment an artillery-based solution would require. Perhaps adding a few batteries to the buy of whatever replaces the outgoing east-built guns will still turn out as the prefered solution?

Advertisements

2 thoughts on “Reach out and touch someone – at 40 km

  1. Chris Werb

    Hi there. The Spike ER always had non line of sight capability – this was not added with the ER2. The ER2 adds, among other things dual-mode thermal and day channel seekers in the same missile. HTH. Chris.

  2. Vulcano rounds would be a much better solution (155 mm SAL or 127 IR terminal guide) than NAMMO ramjet (in my opinion a way too far complex projectile)

    SciFi mode on: a land based 127mm naval turret equipped with 127IR guided Vulcano rounds and a fully automatic handling systems (AHS) . With a >80km range, pinpoint accuracy and 32 rounds per minute … and some short range air defence capabilities as bonus!!
