M23 – If it ain’t broke, build it at home

The opaque Sako AR has finally properly broken cover with an FDF order for series production of the weapon. The weapon – which was known as the K22 in the testing phase – was officially adopted as the M23 with an order worth approximately 10 MEUR this week. The weapon will be acquired in two configurations for the (light) sniper and designated marksman roles. In these configurations the weapon will be known as the 7.62 TKIV 23 and 7.62 KIV 23 respectively.

Emphasis can be placed on the fact that both rifles are the same, with only the accessories differing. Key among these differences is that the TKIV 23 (sniper rifle) will sport a Steiner M7Xi 2,9-20×50 with a modified MSR2-reticle. The MSR2 is a prime example of a modern sniper optic, which means it is packed with different dots and bars to allow for accurate judging of distances and adjustment for different conditions (and which also make it look rather busy to the untrained eye, something the Finnish modifications deals with). The KIV 23 (DMR) will instead sport the Trijicon VCOG 1-6×24, which is a typical example of modern DMR-optics in that it allows for almost red dot-like close-range versatility at the non-magnified setting while still providing for target recognition and accurate shots at range with the higher magnification.

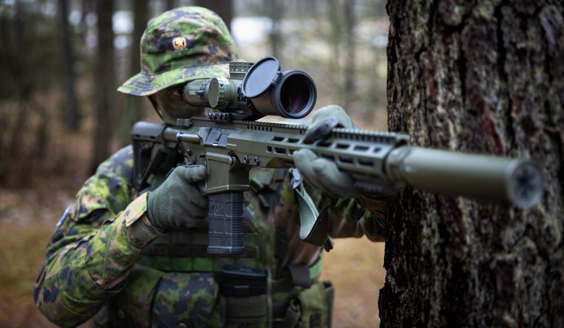

The 7.62 TKIV 23 with the larger Steiner-scope and an Ase Utra-suppressor. Source: Finnish Defence Forces

Most of the details are what you would expect from a modern DMR-platform. The weapon is an AR-10 pattern short-stroke piston-operated semi-auto rifle, fully ambidextrous, ships with 10- and 20-round P-mags, free-floating barrel, NATO Accessory Rail (i.e. backwards-compatible with Picatinny) and M-LOK mounting options, and sports a Ase Utra flow-through suppressor as standard (believe this is the version in question) mounted on a BoreLock-flash hider, adjustable Magpul CTR stock (which is used also on the upgraded 7.62 RK 62M), green ceramic coating, and so forth. Perhaps the one thing that does somewhat differentiate the weapon is the fact that it comes only with a 16” barrel, with a number of countries  (including Norway) preferring a 20” barrel for their corresponding sniper systems. At the same time the uniqueness of this feature shouldn’t be exaggerated, as 16” barrels certainly also are found in a number of places (such as the US Army’s new M110A1 which likewise is used both as a compact sniper rifle and as a DMR). There is obviously a bipod involved as well,  which for the time being at least is a Magpul bipod.

An interesting detail is that more or less all components are found straight off the shelf, meaning the cost should be manageable (and any reservist wanting to build their own MILSPEC-rifle should be able to do so once the rifle itself is out on the civilian market, something which I expect will happen within the next few years). Several of the components are also familiar from the RK 62M, further highlighting that while the weapon itself is new, this is really a rather straightforward and conservative design. As such the risk of any unpleasant surprises down the road either when it comes to performance or cost appear limited.

The first deliveries will take place before the end of 2022, with conscripts getting their hands on the weapon starting in 2023 (hence the name), after which “most” 7.62 TKIV 85 (a highly modded Mosin-Nagant) and all 7.62 TKIV Dragunov (no points for guessing which weapon that is) will be withdrawn from Finnish service. While infantry weapons seldom win wars, it is hard to describe how much of an upgrade this is for both the Finnish snipers as well as for the designated marksmen running around with Kalashnikovs with ACOGs (okay, slight exaggeration, but still). On paper the effective ranges are reported as up to 800 meters with the Steiner scope and up to 600 meters with the VCOG, though to be honest I would not be surprised if trained shooters under somewhat decent conditions would be able to be effective out to and beyond the 1,000 meter mark considering the scope, calibre, and Sako’s reputation for quality on their rifles. A key detail here is that the FDF press release discussing the ranges mentions high-quality rounds when talking about the 800 meters figure, while the DMR apparently is not set to receive such luxuries. One of the obvious benefits of the 7.62×51 mm is obviously the fact that there is both (relatively) cheap bulk ammunition allowing for training at shorter ranges, as well as dedicated long-range loads. The small number of rounds fired by Finnish conscript snipers is certainly one of the weaknesses of the current training, something that hopefully at least partially can be remedied by the transfer away from the classic rimmed 7.62 mm calibres.

The obvious question at this stage is why isn’t this a Heckler & Koch HK417/G28/M110A1? That does seem to tick all the boxes, right? The obvious answer is that the M23 is made in Finland, with the FDF better being able to influence design and production, and security of supply certainly is a key driver. On paper, there is preciously little that differentiates the two weapons from each other, and it will be highly interesting to see if this is just an illusion once the first comparative reviews start to appear on the internet. What has been said is that the FDF did test the GK417 as well, but preferred to go with the M23.

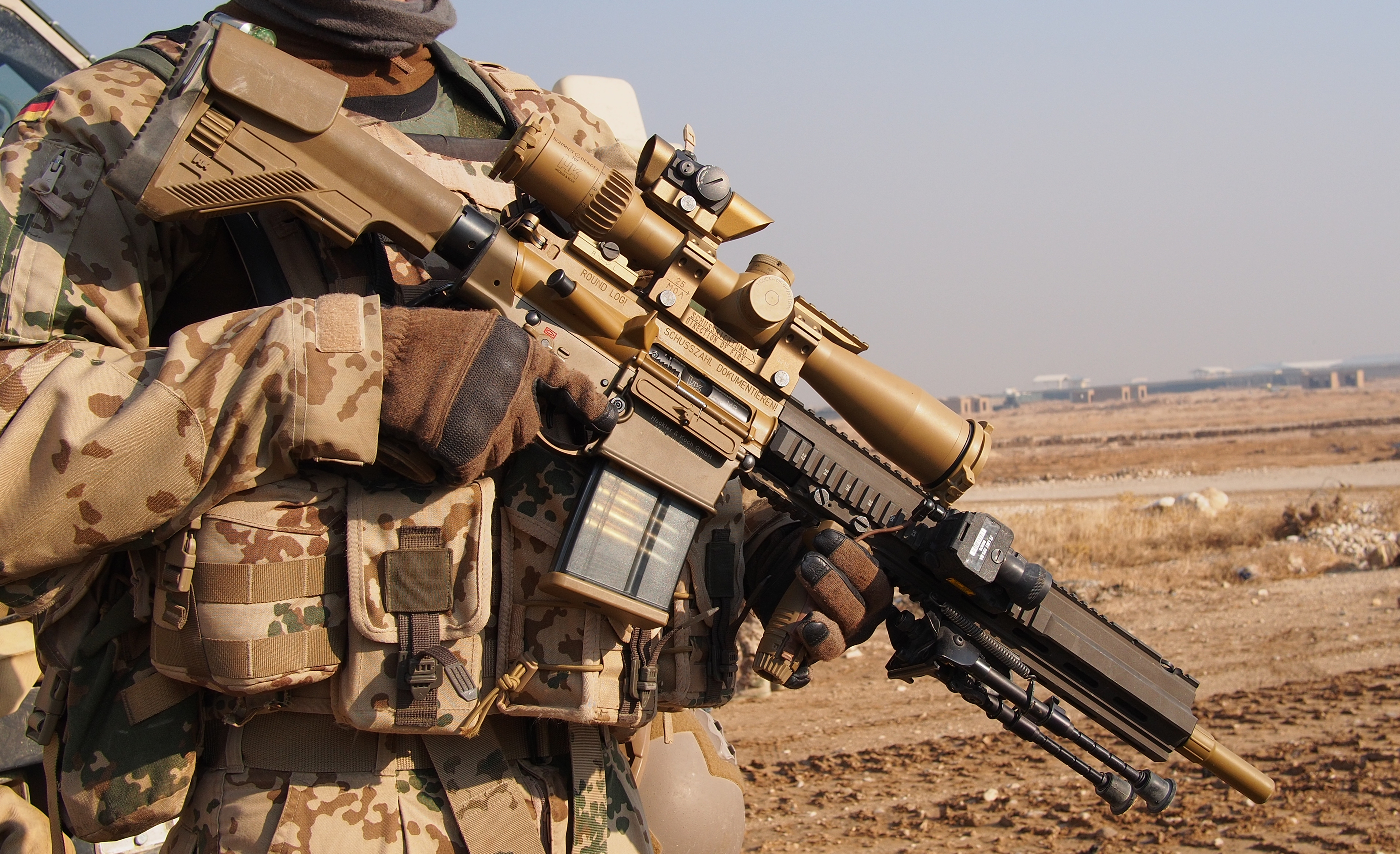

A German soldier with the G28 – the Bundeswehr DMR version of the HK417 – in Mazar-i-Sharif in Afghanistan back in 2013. Spot features that aren’t found on the M23, or vice versa. Source: Thomas Wiegold/Wikimedia Commons

What about the Swedes? As mentioned earlier the weapon is currently undergoing testing in Sweden in the DMR-version with the VCOG as a potential replacement for the AK 4D (modified G3), and while the testing is still underway with no word on the findings, brigadier general Mikael Frisell (Director Land Systems at the Swedish Defence Material Administration, FMV) confirmed that if the weapon meet the Swedish requirement the “primary alternative is to buy the same as Finland, i.e. both the weapon and the accessories”. In other words, the Swedish DMR would be the same specification as the 7.62 KIV 23. The brigadier general was indeed over on a quick visit to Helsinki on the day of FDF placing the order with Sako to sign an Implementation Arrangement for firearms together with his Finnish colleague, building upon the earlier agreements (as well as a highly interesting Technical Arrangement for joint procurement of ammunition to mortars, MBTs, artillery, and anti-tank systems), further cementing the path forward.

Is this also the new assault rifle for both countries then? The short answer is that the M23 contract does not include anything besides sniper rifles and DMRs. However, as was earlier reported, both countries are looking at renewing their assault rifles, and with Sweden reportedly having taken lead on the assault rifle, and looking at the 7.62 NATO as the most promising candidate due to its development potential, and both countries having expressed a wish to buy from Sako due to security of supply reasons, any future assault rifle bought from Sako in the same calibre would certainly be at least based on the M23. But, and I will stress this, for the time being no such contracts are in place, and the assault rifle program is still at the concept stage.

Another somewhat different angle of the TKIV 23. Note attached sling, attachment bolts for the hand guard allowing a free floating barrel, forward assist, and the seemingly lean profile of the operating mechanism for a piston-operated AR (though that might be down to the camera angle). Source: Finnish MoD Twitter

An interesting detail is that there’s an option in the FDF order that is worth 525 MEUR (yes, fifty times the original order value). Exactly what this covers is interesting, but note that sniper rifles tend to be expensive when coming fully kitted out. The M110A1 is for example coming in at approximately 12,000 USD (10.6 kEUR), and it is entirely possible that there is included e.g. simulators or even bulk buys of ammunition for a decade or two with a requirement on Sako to deliver batches meeting a certain accuracy requirement, all of which could drive costs. Also, it is worth remembering that even if the weapon will be rare-ish in Finnish service, that’s still one in nine of the infantry soldiers in the first line squads who will receive the KIV 23. However, no matter how you parse it, it has to be said that the option is certainly surprisingly large. The potential Swedish order value is also not included, though the cross-buy principle reported earlier means that the contract signed by the lead country include the option for the partner to acquire weapons according to the same cost and legal terms.

Sources include the FDF press release, the MoD press release, and Twitter’s sniper-on-call

6 thoughts on “M23 – If it ain’t broke, build it at home

  1. Pingback: M23. Finnish military gets a new light Sniper Rifle and a DMR. – Free World News

    1. I mean, the official press release mentions the “AR10/15-pattern”, so for the time being it’s difficult to say how closely it matches any specific earlier rifle.

      1. Ευστάθιος Παλαιολόγος

        AR10 receiver is like enlarged AR15. Tubular in cross section
        SR25 has a rhombus kind of cross section. The external surfaces are flat towards the rear
