Cruise Missiles for HX

From the outset the Finnish Defence Forces have been stating that they are not replacing a multirole fighter (and thus buying a new one), but instead they are replacing the capabilities of it (and thus buying a new one to provide the same capabilities as the old one). This might look like semantics, but was suddenly brought to the forefront when the RFI for weapons and external sensors was sent out.

Short background: the current Finnish Hornet-fleet sport five different weapon types (plus an internal gun). The AIM-9 Sidewinder (in L- and X-versions) provide short-range air-to-air capability, while the AIM-120C provide medium-range air-to-air capability. With the MLU2 air-to-ground weapons have been brought in as well. The JDAM-series of guidance kits are fitted to ordinary 225, 450, and 900 kg bombs (official designations then being GBU-38, GBU-32, and GBU-31 respectively). These use a combination of internal navigation (INS) and GPS to provide accurate hits on the target. The main problem is that hitting moving targets doesn’t really work, which have prompted the creation of other guidance kits sporting laser guidance in combination with INS and/or GPS. These have however not been acquired by Finland. Also, the range is short, and in practice the fighter has to overfly the target. Still, the JDAM is cheap and reliable, and has proved a favourite in Afghanistan and the Middle East. Time will tell if the recent GPS-jamming incidents will cause issues for weapons which rely on GPS for navigation and/or target acquisition.

17991321_1397309040333071_9165776923558989985_o

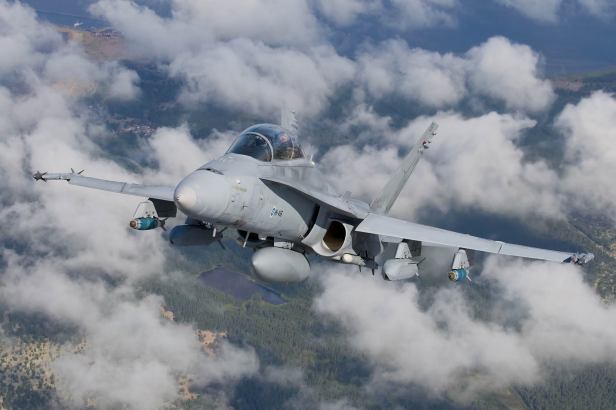

Finnish F/A-18C Hornet upgraded to the MLU2-standard displaying AIM-9X and AIM-120C air-to-air missiles as well as JDAM and AGM-158 JASSM air-to-surface weapons. Source: Ilmavoimat
A solution to getting more range out of a bomb is to fit it with wings, which leads to the AGM-154 JSOW. The JSOW feature folding wings which deploys after launch, letting the weapon glide towards the target. Three different versions are found, of which two hold submunitions (‘cluster bombs’), while the third is a single BROACH-warhead. The BROACH feature a two-stage warhead where a small(ish) shaped charge first blows a hole in the target, which the main warhead the flies through and detonates on the inside of (see this Australian clip of a live-fire test, the slow-motion entry is found at the 0:54 mark). For improved accuracy the AGM-154C with the BROACH feature an infrared seeker for terminal guidance. In Finnish service the JSOW is something of an enigma, with both the number of weapons and version acquired being unclear to me. I had originally thought the JSOW had been acquired in a very limited number for test and evaluation purposes only in case the JASSM wouldn’t be cleared for export, but during Ruska17 it was mentioned as part of the Finnish arsenal. It seems likely that a small number of AGM-154C JSOW are found as a cheaper mid-range solutions for targets which might be too well-defended for a JDAM-run. The big problem with the JSOW is that as it lacks an engine, its range is highly dependent on the speed and height of the aircraft when launched.

The silver bullet in the Finnish airborne arsenal is the AGM-158 JASSM. The JASSM feature a 450 kg penetrating warhead in the form of the WDU-42/B, and is powered by a small jet engine giving it significantly longer range than the JDAM and JSOW. The cruise missile is stealthy, and navigates by combining GPS and INS during flight, before switching on a IR-seeker for terminal guidance. It is a smart weapon even by modern standards, and dives towards the target at different angles depending on the amount of penetration needed (steeper for harder targets such as bunkers). All this also makes the weapon rather expensive, with the DSCA listing the Finnish request for up to 70 weapons at an estimated value of 255 million USD.

These are the capabilities to be replaced: the ability to shoot down enemy aircraft at different ranges, and to strike hard but not necessarily moving targets at all ranges.

It is important to remember that the weapons work already before release, in that any potential attacker has to calculate with the Finnish Air Force being able to launch a strike taking out key installations such as bridges and command bunkers deep behind enemy lines without ever being close to these. The psychological effect of the nagging knowledge that when getting inside a few hundred kilometers of the frontline you are always under threat should not be underestimated.

160323-N-ZZ999-110
An F-35C Lighting II conducts separation tests of an AGM-154 JSOW. The white dots are photo calibration markings. Source: U.S. Navy photo by Dane Wiedmann via Wikimedia Commons
The press release on the RFI was rather bland, but Jarmo Huhtanen of Finnish daily Helsingin Sanomat had an interesting interview with engineering brigadier general Kari Renko. Renko dropped a very interesting comment, which will have huge consequences for the HX-program.

We won’t go down the route of starting to develop the integration of machine and weapon. We’re buying missiles, their documentation, transportation containers, training, and so forth.

He also mentions that the weapons and sensors will account for roughly a tenth of the total budget, i.e. in the neighbourhood of 700 million to 1 billion Euros. A second interview with program manager Lauri Puranen (retired FiAF major general) in Finnish paper Talouselämä takes a slightly different view, putting the total weapon cost at 10-20% of the total value, i.e. 700 million to 2 billion Euros, though he notes that there is no idea in buying the whole stock immediately upon ordering the fighters, as the weapons have limited shelf life (this might explain the difference their estimates). This sounds about right for providing a small stock of short- and medium-ranged air-to-air missiles and a few different air-to-ground weapons. A short mention of DSCA cost estimates for similar weapons from recent years.

It must be said that this is a very Finnish way of making defence acquisitions. Buying just behind the cutting edge, at the (hopefully) sweet spot where the R&D work is done and the true costs are known while still modern enough to be considered high-tech. The package above comes in at 1.08 billion Euros and would be something of a bare minimum (e.g. 64 fighters would get an average of 4.7 AMRAAMS each, meaning that after the first wave was launched there wouldn’t be any reloads to talk about). The Finnish order is also likely to be more air-to-air heavy than the mix above would be.

It also means that if Renko (who have his roots in the Air Force) is to be taken literally, the HX-field will be turned upside down.

The air-to-air part is no problem, all contenders have sufficient missiles integrated. Guided bombs are also found, though in most cases not JDAM’s but rather laser or hybrid laser/GPS/INS-guided ones. It is questionable if the JSOW is actually needed as the Goldilock-solution between a guided bomb and a cruise missile, and if it is a priority to be bought at the beginning of the project. In any case, it is fully integrated on the F/A-18E/F Super Hornet, while the Rafale feature the AASM ‘Hammer’-series of modular guidance/propulsion kits which include interesting versions that also exist in the middle ground between guided bombs and ‘true’ missiles.

© Alex Paringaux

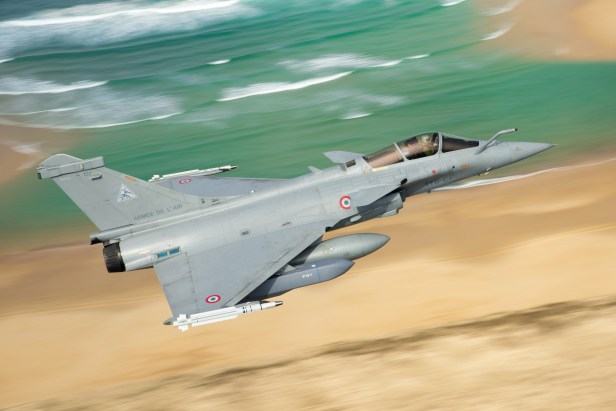

A Rafale C in flight equiped with wingtip Mica IR air-to-air missiles, 2000 ltr drop tank on inboard station and SCALP-EG (Storm Shadow in British service) cruise missile on the outer station. Source: © Alex Paringaux courtesy of Dassault Aviation
The big dealbreaker is the cruise missile. If Renko means business, that the HX need to have a long-range cruise missile with a serious penetrating warhead ready by the time it reaches full operational capability in the 2029-2031 time span, two of the top-contenders have a problem at their hands.

The Rafale and the Eurofighter Typhoon both sport the joint-French/English SCALP/Storm Shadow. This is a highly potent weapon in the same class as the JASSM, including a stealthy design, and is combat proven over Iraq, Syria, and Libya. The Rafale already carry the weapon, while the Typhoon is about to get it as part of the P3E upgrade currently underway. As such, both should welcome the news that this is a requirement.

The F/A-18E/F Super Hornet just might get a pass, as it sport the Harpoon-based SLAM-ER with a 360 kg WDU-40/B titanium-reinforced penetrating blast warhead. The SLAM-ER feature many of the same capabilities as the JASSM (though being lighter and shorter-legged), and is the US Navy’s answer to the gap created in their inventory when they dropped out of the JASSM-program. The fighter is also in the process of getting the AGM-158C LRASM, the anti-shipping derivative of the JASSM, which might offer a possibility to fast-track AGM-158A/B integration once complete.

JAS 39C/D Gripen have no long-range ground attack capability. This will be remedied by the upcoming Rb 15F-ER which while developed from the RBS15F anti-ship missile will also have a secondary land-attack capability. However, the weapons main use and roots are shown by the warhead which is a 200 kg blast fragmentation one. Excellent for ships, but despite having delayed fusing options this likely lacks the penetration to be able to take on hardened targets.

The F-35 is the other big question mark, with the JASSM not confirmed for the fighter. It has been cancelled for the Block 4, with one spokeswoman saying they “expect it” in the Block 5 timeframe which “is expected to begin in 2024”. The scope of Block 5 is still undecided, with one aviation journalist describing it’s status as “just a collection of tech that didn’t make the cut for Block 4“. RAF/RN had originally planned for the Storm Shadow to equip their F-35’s, but has since dropped it. As such, the F-35 have no confirmed cruise missile for hardened targets at the moment. The one missile which is confirmed is the JSM, which like the Rb 15F-ER is an anti-ship missile with secondary land-attack capability, and which also feature a 200 kg combined blast and fragmentation warhead. Manufacturing partner Raytheon is happy to call it “the only fifth-generation cruise missile that will be integrated on the F-35”, which is likely more of a marketing line than an indication of the company sitting on information that the JASSM has been cancelled for the F-35.

Taurus KEPD
Taurus KEPD 350 displayed together with the JAS 39D Gripen at the Tour de Sky airshow in Kuopio, Finland, back in 2016. Source: Own picture
The answer to the Gripen’s woes would have been the Taurus KEPD 350. The joint Swedish-German missile is carried by German Tornadoes, Spanish EF-18 Hornets, and (soon) South Korean F-15 Eagles. Preliminary flights have been undertaken by the Gripen (and the Eurofighter for Spanish and German needs), but the missile was never integrated on the 39C/D, and it’s future as part of the 39E’s arsenal is still unclear. The Swedish then-government/now-opposition signalled back in 2014 that they “want cruise missiles on the new Gripen”, though it has never been clear whether this means the RBS15F or some heavier land-attack missile. In any case, no firm order for KEPD 350 integration onto the Gripen has been made, and it is difficult to see a Brazilian requirement for it. The KEPD 350 is however actively marketed as an option for the Gripen by Saab.

While Puranen’s cost estimate of the weapon package might be higher than Renko’s, he is of the same opinion when it comes to integration costs.

Our position is that the aircraft suppliers are responsible for the integration of the weapons found in their offers, and that the costs for this are included in the offer.

This leaves Lockheed-Martin and Saab with something of a conundrum. Unless JASSM or another suitable missile is confirmed for integration before 2030 by another paying customer, and unless this confirmation comes before the final offers are made in 2021, the companies will have to include the complete integration costs when calculating their bids to Finland. Obviously the majority of the costs will be funneled back directly to their HX-bid (TANSTAAFL), while the Rafale and the Typhoon will be able to make their offers without this additional cost (or at the very least with a significantly reduced one). It also raises the question which missile they should choose to offer. While there has been much speculation about keeping the JASSM’s, their shelf-life does in fact end about the time the Hornets are withdrawn.

JASSMed

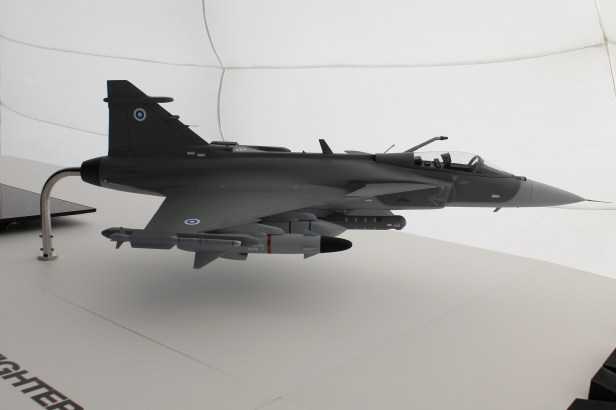

Gripen E model in Finnish colours displayed by Saab at a Finnish air show. The model is armed with Rb 15F, Irist-T air-to-air missiles, and JASSM. Source: Own picture
Saab has been marketing a willingness to integrate the JASSM if Finland requests so. However, if they are free to offer the long-range strike option in whichever form they want, doing so by integrating their own Taurus instead of Lockheed-Martin’s JASSM might certainly be tempting, especially as the Taurus offer some unique gimmicks such as the ability to detonate at a specific pre-set floor. Another possible solution which might be tempting for both manufacturers would be to develop penetrating 500-lbs warheads for the JSM and Rb 15F-ER, as this might turn out to be a cheaper solution than integrating a completely new weapon. Still, when it comes to penetrating warheads, mass matters, and it is clear that this would be an inferior solution compared to heavyweights such as the JASSM, Storm Shadow/SCALP, or Taurus.

12 thoughts on “Cruise Missiles for HX

  1. Kristian

    The JSM actually only has a 120kg warhead – not 200kg. The marketing people has tried to smooth that over by claiming it is a so well designed warhead that is delivered so precisely to the target that it delivers a 200kg effect. That might carry some water against a ship target but against a reinforced bunker the low weight will severely hamper it’s performance. This is the actual PR text regarding the warhead:

    “The JSM has a 500lbs class warhead with a gross weight of 120 kg and explosive weight of 100 kg (TNT equivalent).”

  2. “Finnish Defence Forces have been stating that they are not replacing a multirole fighter (and thus buying a new one), but instead they are replacing the capabilities of it (and thus buying a new one to provide the same capabilities as the old one).”

    What capability are talking about here? Being able to launch long-range-penetrating-warhead cruise missile or being able to destroy well defended HVT deep inside enemy territory? F-35A does not need the first to perform the latter.

    Regardless, even if FiAF wants to have a stand-off weapon simply for having’s sake (maybe they don’t want to risk to have to fly a rescue mission behind FLOT, at all) then by 2029 F-35 will have UAI (Universal Armament Interface) making JASSM, or any other weapon integration for the matter, much easier. Even if yanks, for some reason, aren’t bothered to put JASSM on F-35, ever, Navy has already approved, funded, and started integration of JSOW onto F-35.

    1. The F-35 is low-observable, not invisible. I don’t foresee stand-off weapons disappearing just because it enters service (the USAF is looking at the B-2 for the next wave of JASSM-platforms). The JSOW being unpowered will need to be launched from height and speed to be able to get out to full range, which is a launch mode that isn’t always desirable from a tactical point of view. Hence the reason why powered stand-off weapons have their market share despite their high price. While software integration is much easier today (on a number of platforms) compared to what it has been, you are still looking at quite a bit of work around separation modelling and tests, as well as a proper live firing program. None of these comes cheap.

      1. F-35 is indeed not invisible; even LM promo videos don’t make it that lopsided. However it was used for simulated DEAD missions carrying only guided bombs both by USAF and USMC during various exercises this two past years. B-2 is a cruise missile carrier, but it also received JDAM upgrade before any tactical fighter and was the first warplane to employ it in combat.

        Undoubtedly having more weapons will be trump in the competition, however not having a JASSM/SCALP type of weapon won’t be the biggest of setbacks for F-35, *even if* it, for some reason, does not have one within next ten years or so.

  3. Petri S.

    If the current (political?) troubles with JASSM integration do not vanish quickly, that will damage the chances of all U.S. HX contenders.

    1. Nope, just preliminary flight tests for evaluation, the missile was never fully integrated. Same goes for Taurus on Eurofighter, though in that case there exist a stated aim by German and Spanish customers to eventually integrate it when the Tornado and EF-18 are retired.

  4. “Still, when it comes to penetrating warheads, mass matters, and it is clear that this would be an inferior solution compared to heavyweights such as the JASSM, Storm Shadow/SCALP, or Taurus.”

    It seems clear that Finnish targets would mainly be hardened targets. But if you want to incapacitate or sink marine targets Kepd 350 would likely be a better choice. It depends on how resistant the cruise missiles are to jamming when GPS is in action. Also, aerosols can be used by the targets, rendering the use of a cruise missile pointless. This is more easily remedied against a floating vessel of iron.

  5. Nick Nolan

    The reason why Finland must equip its fighters with land attack cruise missiles (LACM) is
    the The Missile Technology Control Regime (MTCR). It limits longer range missiles into air or sea launches and limits their range. Russia breaks this regime with semi-ballistic Islander missiles.

    Burdening small Finnish air force with air-to-air defence and ground attack missions is costly. Ideally we would have land launched cruise or ballistic missiles missiles with 400 – 600 km range. Now we must use very expensive platform that should be dedicated to air defence.
