HX goes DSCA

One of the more anticipated milestones of the HX-process took place this week with the publication of the DSCA-notifications. These somewhat poorly understood bureaucratic processes caused some waves in the PTO 20200-tender. This time the Finnish MoD has done its best to avoid similar jumps to conclusion by media and other observers, but there has still been some less-than-helpful interpretations of what the notifications says. In short, the US regulations require that the congress is informed about important upcoming arms deals as a matter of oversight, something that happens through the DSCA-notifications. In the case of HX (and the Swiss AIR2030/NFA which made headlines a short while ago) the potential tenders are being pre-cleared, i.e. congress is notified about an upcoming potential sale. This allows for quicker turn-around if and when a contract is signed, and ensures that the supplier actually can deliver what they’ve promised. The most important points that sometimes get lost are:

  • The fact that this isn’t an order, nor are they necessarily corresponding to what is included in the final order (in fact, often they aren’t as it makes sense to clear the possible maximum amount of items in one go instead of having to go back and request a second clearance in case the requirements changes),
  • The negotiations of the HX-program is still ongoing, and as such neither the buyer nor the seller knows for certain the details of the final offer,
  • The value quoted for the DSCA-notifications usually aren’t that helpful in determining the contract value,
  • Most crucially, the notifications are ridiculously detailed in some ways, but glossing over major items in others. See “40 inch wing release lanyard” getting its own row, but “Spares” being a single line item.

To sum it up, long-term aviation journalist Gareth Jennings commenting on the AIR2030 put words to how everyone covering the process feels.

With that said, let’s jump into what information can be gleaned from the notifications.

Numbers don’t lie

The first obvious issue is the number of aircraft. With programme director Lauri Puranen on record stating that 64 aircraft seems impossible, it is noteworthy that the Lockheed Martin notification is for 64 F-35A and the Boeing has a total of 72 aircraft, made up of 50 F/A-18E Super Hornet, 8 twin-seat F/A-18F Super Hornet, and 14 EA-18G Growler. While it is still within the realms of possibilities, if unlikely, that we would see a 64 fighter buy, I don’t see how 72 could fit within the operating budget. As such, the 72 aircraft notification is a good indication for the fact that the final mix of the Boeing offer is still up in the air. 40 F/A-18E, 8 F/A-18F, and 12 EA-18G for a 62 aircraft fleet would be my personal guess.

Another place where the final offer is evidently still not set in the Boeing offer is the targeting pods (the F-35 notably not requiring one, as it has an internal electro-optical sensor based on the technology of the Sniper pod). The notification includes 32 ATFLIR, 32 Sniper (of an undisclosed version, but likely the XR), and an undisclosed number of the Litening (notable is that Finland currently uses an earlier version of the Litening-pod, the version now on offer would likely be the Litening 5). The ATFLIR was the one brought over for HX Challenge, but on the other hand the Litening was brought over hanging under an Eurofighter, so Finland has verified data on that one as well. I won’t comment on which pod would provide the best solution, as the details are A) classified, and B) I’m not familiar enough with the pod-world to say if there’s any kind of significant differences found in open sources. I will note that the ATFLIR has had teething troubles, but those seems (maybe?) to have since been overcome, and that the Litening 5 is being developed to sport a SAR-module, which is something of an unique selling point, but one likely to be of secondary value.

The single-seat F/A-18E Super Hornet getting airborne from Tampere-Pirkkala AFB during HX Challenge earlier this year. The notification confirms that if Boeing wins, the single-seater will be by far the most common version. Source: Own picture

In the same way, it can be noted that a total of 25 IRST-pods are cleared for the Hornet-bid. The Super Hornet’s IRST solution with a centre-line has been criticised for being less elegant than the integration on the competitors, though it in fact suffers from a relatively small blind spot. What is interesting is that the numbers for both the targeting pod (presuming that only one model is bought) and the IRST both are offered in numbers covering approximately half of the fleet. This is in general one of the strong points of the F-35, every aircraft gets its own ‘pod’ thanks to the sensor being internal, while for the rest budgetary restraints often causes some aircraft to be left without. Exactly how the Super Hornet operations would look is an interesting question, but one alternative could be one aircraft of a pair flying with a pod and the other with an IRST.

As noted, with security of supply being a key factor and the ability to overhaul the aircraft locally from local stocks a key item here, the spare parts packages are naturally of great interest. Here, however, we’re more or less completely out of luck, as these crucial items are reduced to the single line of “provisioning, spares and repair parts”. It is, however, notable that this is a rather different wording compared to the Swiss notifications that only include “aircraft spares”. However, there is another place where spares catch the eye, and that is on the line discussing engines. The F-35A bid lists two spare P&W F-135 engines, while the F/A-18E/F/G offer lists 22 spare F414-GE-400 (interestingly enough, here the Swiss notifications for 40 aircraft listed six and 16 respectively). Good arguments can be made for the F-35 needing fewer complete spare engines for a given fleet size, including both during peacetime (single-engined aircraft having half the number of engines compared to twin-engined ones, the more modern design potentially having longer life and more replaceable subassemblies) and wartime use (an engine damaged enough to warrant replacement likely will lead to the loss of the aircraft). However, for a country obsessing about security of supply and with the supply of spare parts being one the major questions surrounding the F-35 in the HX-programme, it does strike one as an oddly low number, and makes the question about what really is found in the spare package even more interesting.

Like the spares, the amount of supporting equipment found amongst the rows isn’t straightforward to judge. There are a number of interesting rows, including training equipment, as well as numerous test vehicles for the weaponry. Key terms are also differing if compared to AIR2030 notifications, though considering the somewhat erratic template through which the notifications are pushed it is difficult to say how much weight should be placed on these differences. Still, there’s a few interesting discrepancies, such as the inclusion of the Operational Data Integrated Network (ODIN, to replace the much maligned ALIS which is on the way out) in the Finnish notification, a system that isn’t found the Swiss one. “Weapons system software” is also found in both Finnish notifications but in neither Swiss one, something that might simply have to do with the inclusion of more complex weaponry. An interesting row is found on the personnel needed to support the F-35.

U.S. contractor representatives will be required in Finland to conduct Contractor Engineering Technical Services (CETS) and Autonomic Logistics and Global Support (ALGS) for after-aircraft delivery

As noted, everything that includes the word “Global” is something of a red flag to the Finnish security of supply requirements, but at the same time it is obvious that during normal peacetime operations it makes sense to leverage the significant savings that can be found in operating what is rapidly turning out to be the next joint European fighter. However, there is little in the notification to indicate what kinds of additional steps have been taken to ensure that Finland has the required level of control over the security of supply compared to other more traditional customers. This might or might not mean something, as noted many of the crucial items in the notification doesn’t provide much in the way of details.

EW

Everyone, myself included, is obviously counting weapons cleared for sale, but let’s start with the more obscure but no less important side of things. Electronic warfare.

It is important to note that we in essence are talking of three very different platforms, something that is visible in the notifications. The electronic warfare suite of the F-35A is highly integrated into the aircraft, and as such relatively few lines are dealing with it. There’s simply a mention of “Electronic warfare system”, as well as related systems such as C4I and the “F-35 unique infrared flares” (to the best of knowledge the aircraft does not carry chaff dispensers Edit: The F-35 is in the process of getting chaff. Thanks to JoJo for flagging it in the comments!) and access to the reprogramming centre. Compared to the long list of the Super Hornet that seems a bit cheap, but that is most likely simply because you can’t buy an F-35 without getting the whole package. As such, there’s no reason to mention particular details such as the ALE-70 towed decoy for the F-35, while in the case of the Super Hornet, the corresponding ALE-55 does get it’s own row.

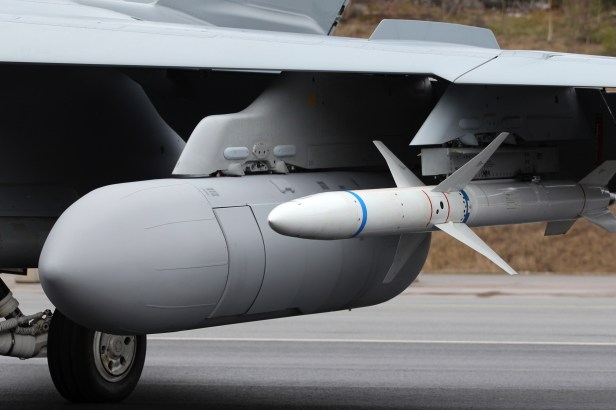

The NGJ mock-up together with an AGM-88E AARGM anti-radiation missile (i.e. it locks onto a radar and flies into it) under the wing of the EA-18G Growler taking part in HX Challenge. The capabilities of the NGJ will be evaluated in the US, due to sensitive nature of the capability and the need for a large testing range. Source: Own picture

Another good pointer to the fact that Boeing isn’t in fact preparing a 72 aircraft bid is the fact that only 65 pieces of the AN/ALR-67(V)3 EW countermeasures receiving sets and the AN/ALQ-214 integrated countermeasures systems are included. The more cryptic “Advanced Electronic Attack Kit for EA-18G” is more along the lines of how the F-35 is described, with a single line referring to more or less the whole package.

With an important exception.

Eight (8) Next Generation Jammer Mid-Band (NGJ-MB) sets

I’ve discussed the NGJ-MB earlier, the long story short version is that it is an extremely powerful system able to go after enemy air defences, but also enemy communication networks. On the flip side, it costs an arm and a leg, but in many ways it is a key piece of the Growler’s wartime capabilities post-2030, and getting eight systems would provide Finland with one of the best airborne escort as well as stand-in jamming capabilities in Europe. Note the reference to “sets”, which would seem to indicate that there will be a total of sixteen pods delivered, with the aircraft having one under each wing. Currently the Growler flies with three AN/ALQ-99 pods in different configurations for different bands. The new NGJ-MB replaces the two underwing units, with the third centre-line mounted one being slated for replacement by the low-band NGJ-LB. If Finland opts for the Growler, the NGJ-LB can make its entry at some point further down the line (as can the eventual high-band pod which will come yet later). However, the utility against current threats is greatest for the NGJ-MB, especially if Finland continues on with a non-stealthy force meaning that the proliferation of new low-band radars aren’t as big a threat scenario as it is for the US forces. It is also notable that the greatest criticism leveraged against the NGJ-MB so far (decreasing the range of the Growler due to high drag when the pod is active and the doors to the ram air turbine are open) is less of an issue for Finland compared to the China-scenario which is the main driver behind current USN development.

Weapons

One thing we do know, however, is that Puranen didn’t exaggerate when he talked about the comprehensive weapons packages pushing the budget. The notifications include sizeable amounts of JDAMs, both thermally insensitive HE (i.e. the stuff shouldn’t explode if your ammunition storage is on fire) as well as bunker buster rounds, GBU-53/B SDB II’s small glide bombs, AGM-154C-1 JSOW stealthy glide weapons with a secondary anti-ship capability, AGM-158B JASSM-ER long-range heavy cruise missiles, AIM-9X Block II+ and Block II respectively, as well as JSM integration in the case of the F-35A and HARM/AARGM-rails in the case of the Super Hornet/Growler. Curiously absent are the JSM and anti-radiation missiles themselves, as well as any air-to-air missiles with a longer reach than the Sidewinder.

JTAC directing a Hornet dropping a JDAM on a target that already was under artillery fire as part of last year’s KAAKKO19 exercise

The air-to-ground package is interesting, as it continues as well as expands upon the air-to-ground capabilities currently operated by the Finnish Air Force. The JDAM is a weapon currently found in the Finnish inventory in the form of Mk 84-based GBU-31V1, the Mk 83-based GBU-32, the Mk 82-based GBU-38 and the BLU-109-penetrator based GBU-31V3 (commonly known as a ‘bunker buster’). The Mk 84 and BLU-109 is a 1,000 kg class weapon, with the Mk 83 and Mk 82 being 500 kg and 250 kg class weapons respectively. It is more of the same weapons that are requested this time around, with exception that the F-35A has skipped the GBU-32 and loaded up with more GBU-38s. The Super Hornet is cleared for 102 GBU-38, 51 GBU-32, 120 HE GBU-31, and 30 bunker-busting GBU-31, with the corresponding numbers being 150 GBU-38, 120 HE GBU-31, and 30 bunker-busting GBU-31 for the F-35. Are there situations where you want a 500 kg weapon instead of a 250 kg or a 1,000 kg one? Sure, if nothing else the 500 kg provides a bit of margin with regards to accuracy compared to a 250 kg one, in particular if you go after semi-hard targets. Is it enough of a difference to say that the Super Hornet has the edge here? I doubt it, the acquisition as a whole is complex enough that the 50 JDAMs most likely won’t provide a decisive edge. However, they might indicate that Boeing feel they have that small extra wiggle room when it comes to how their package is built, something that might also be seen in the next weapon. Or not.

The JSOW is also found in (limited) numbers in the Finnish arsenal. Originally envisioned largely as a back-up plan in case the JASSM sans-ER wasn’t cleared for export, it apparently has found enough of a use as to be requested this time around as well. The notifications include 100 JSOW for the F-35A, and 160 for the Super Hornet. The JSOW is unpowered (at least for the time being), and as such is highly reliant on release speed and altitude when it comes to range. Once released the weapon pops out a pair of wings on which it glides towards the target. The basic navigation is GPS-assisted inertial navigation, but the C-1 also has an IIR seeker for terminal guidance which has given the weapon better accuracy, and the ability to strike moving ships. The two-stage penetrating BROACH warhead can also be set to a one-stage mode which is more effective against soft targets, such as ships or unarmoured vehicles. The question of maritime strike for HX has been left somewhat open by the authorities, with the aircraft required to be able to support the Navy in the maritime domain, but not necessarily through kinetic means (e.g. systems such as the Growler or the GlobalEye could certainly be of great value when it comes to supporting the Navy in the electronic warfare domain and in building the situational picture). The JSOW could potentially provide a middle-ground, providing the Finnish Air Force with an important capability the primary use of which is in the land domain, but which also could be used against enemy vessels. The JSM is on the other hand a dedicated anti-ship missile with a secondary ground attack role. Thanks to it being powered it has a significantly longer range. However, the JSM might be included as an option for another role as well, as we saw in the Dassault marketing material that it seems destined to be the SEAD/DEAD weapon of choice for the French offer. Boeing and Lockheed Martin reading different levels of importance into the maritime strike mission can obviously be one explanation, but another is that LM feel they need a powered weapon of a lighter class than the JASSM to go SAM-hunting with, and there felt that they can kill two birds with one stone (or rather, both SAMs and ships with the same missile). In any case, the JSM, if acquired, would provide a seriously improved ship-killing capability, and with the JSM being stealthy and equipped with an IIR seeker (as opposed to the radar seeker of the Navy’s PTO 2020/Gabriel V), it would create the need for an enemy to be prepared to defend against two very different kinds of threats. I am unsure how Raytheon and Kongsberg have split up the market for the JSM (again, my time at Kongsberg was spent far away from the Defence & Aerospace-division, so I have no insider knowledge of the project), but it is possible that somewhere outside the US-package there is a separate offer for 60 JSM from Kongsberg for the F-35 package, which would explain the smaller number of JSOW.

The somewhat awkwardly named GBU-53/B Small Diameter Bomb increment II (it is in fact renamed to StormBreaker, but that one hasn’t stuck. At least not yet) would represent a completely new capability for the Finnish Air Force, in that it is a light glide bomb that can be used to take out individual vehicles, including moving ones. The fact that it is unpowered causes the range to be dependent on release height and speed, but on the positive side the small size means a large number can be carried, and it has a seeker with no less than three modes of operating. In the words of Raytheon:

• Millimeter wave radar — provides all-weather capability and the ability to quickly detect and track moving or stationary targets.
• IIR sensor — uncooled IIR sensor provides three categories of classification capability and aim point refinement.
• Semi-active laser sensor — tracks a laser spot from the launch platform or third-party designators.

This would give the HX the ability to go after tanks or artillery positions, including moving ones, but also to provide close air support by striking individual positions designated by ground troops or other platforms. And with the small size of the weapon allowing for large numbers to be carried on each station, the notification include up to 500 live weapons for either offer. The weapon follows on the highly successful original GBU-39 SDB, and is currently cleared for the F-15E Strike Eagle and since this year on the Super Hornet.

A Finnish F/A-18D Hornet loaded with two (training) AGM-158A JASSM during exercise TOUHU17. Note the decision to use a twin-seat aircraft for the long-range strike mission, something that together with earlier self-critique about having too few twin-seaters for operational conversion led many (myself included) to speculate that a larger number of F/A-18F might be included in the offer, something the notification now proved wrong. Source: Finnish Air Force FB

The big stick, however, remains the JASSM. Finland currently operate a limited number of the original AGM-158A JASSM. This has to the best of my knowledge been completely replaced on the production line by the longer-legged (but otherwise sharing a high-degree of commonality) AGM-158B JASSM-ER, 200 of which are now being offered to Finland. This is in turn set to be overtaken by the even longer-ranged AGM-158D JASSM-XR in the next few years (the missing AGM-158C being the LRASM anti-ship version). I would not read too much into the fact that Finland is about to switch from JASSM to JASSM-ER if we end up buying a US fighter. More range is nice, but it is likely also the cheaper (or even the only) option compared to the rest of the family as the ER-production line is currently hot.

Notable is that the JASSM in Finnish service is a weapon described as having a deterrence role, a somewhat controversial notion, but one that apparently has some support in Russian doctrine. However, the low number of weapons has always been the main Achilles heel when it comes to the doctrine of heavy conventional precision-guided munitions being able to function as a deterrent. 200 JASSM-ER backed up by 100-160 JSOW are certainly numbers that are starting to be felt. Especially if the current JASSM stocks are refurbished.

This brings us on to another point. There’s some rumours going on in Finnish defence forums that the ability to employ weapons from current Finnish stocks won’t be factored into the eventual deciding wargame. While I don’t have any insight into the finer details of the wargame, I have not been able to find any support for that idea in the official communication, nor is it in line with what has been communicated earlier. The Finnish Defence Forces is (in)famous for not throwing things away that can be put to use, and Puranen has confirmed to Lännen Media that the possibility of keeping the current JASSM for use on the eventual HX-winner is being studied. While there is no requirement for the winner to be able to employ the Hornet-arsenal, considering that the stated goal of the wargame is to evaluate how well the total package offered would perform as part of the FDF and the Finnish defence concept, removing a potential benefit of one package (such as the ability to keep using the current stocks of AGM-158A JASSM or AIM-120C-7 AMRAAM after overhauling these) in the name of “fairness” does run contrary to both that aim and the nature of war, which famously isn’t fair.

To use a hypothetical example to make things really clear: the Finnish Air Force says they need 200 precision-guided free-fall bombs of a 250 kg class. Eurofighter brings 200 Paveway IV in their offer, but Boeing and Lockheed Martin knows that the Finnish Air Force already has 50 GBU-38 in their current stocks, so they offer 150 new GBU-38 and an engineer that comes over with a toolbox and some spares to ensure that the old stock is good to go for another decade or two. As the whole competition is based on the design to cost method, this allows for the inclusion of more stuff elsewhere in the package. What package would then be evaluated in the wargame? A US fighter with only three quarters of the number of light bombs compared to the competition? A hypothetical package that include 200 new-built bombs but skips on the extra? So far everything we’ve seen and heard from the Finnish LOGCOM indicate that they aren’t interested in playing games, but that they want to evaluate what is on offer. If that include continued life for some current equipment, then I am quite sure that that is what is evaluated.

In any case, there will be medium-ranged air-to-air missiles operational on any aircraft that ends up winning HX, and the options on the table for the American ones include either a separate notification and order before IOC (order in 2025 and delivery 2026/2027 would probably be the approximate timeline) or the continued use of the current AMRAAM stocks. The shelf-life left for these naturally vary highly depending on whether the weapons have been stored or flown, but with the DSCA notification for 300 missiles coming in 2008 and deliveries probably stretching out over at least a few years after that, the newest missiles are likely fit to serve into the early 2030’s if maintained and overhauled. The C-7 version of the AMRAAM is also still rather close to the state of the art when it comes to medium-ranged missiles, and is regularly carried by not only US fighters, but by the Eurofighter and Gripen as well to complement the long-range Meteor. The Meteor is unlikely to enter service on a US fighter, but that doesn’t mean that the US fighters are set to remain looking on while the Europeans (and crucially, the Chinese) have all the fun at longer ranges. When asked about the situation at HX Challenge, Boeing representatives noted that “There’s an opportunity for an advanced air-to-air missile within our offer to address that need”. Exactly what it is wasn’t said, and apparently it won’t be part of the original package. However, both the newest AIM-120D AMRAAM and the upcoming AIM-260 JATM, and possibly other parts of the more opaque LREW-program, are all possible candidates to enter the field at a later date.

One of the visitng F-35As that took part in HX Challenge airborne together with a Finnish F/A-18C Hornet. Source: Finnish Air Force FB

For the anti-radiation missiles, my personal guess is that they would be acquired as a separate package in the early 2030’s if Boeing wins. The capability is completely new to the Finnish Air Force, and with the Growler-unit busy learning the tricks of the trade I could imagine a timeline where the first few years are spent dealing with the non-kinetic methods, with the DEAD-part of SEAD/DEAD being introduced after the HX has reached FOC by 2030.

Conclusions

The notifications were largely on par with what was expected, though I will say that if the requested numbers found in the weapons packages are close to what eventually will be acquired their sheer number came as a surprise to me (and certainly explains the comment Puranen made about the difference in cost between the early calculations and the eventual budget). Even “comprehensive packages” comes in different scales, let’s just put it at that.

The large number of SDB IIs and JSOWs requested were also a bit of a surprise, and shows the expanding mission set of the Finnish Air Force is set to continue. Personally I am still a bit sad, though not necessarily surprised, about the fact that even under the current budget it was possible to squeeze in a small number of the Quickstrike naval mine/JDAM ER combination, but these are obviously possible to acquire later as well.

Some have noticed the large number of aircraft and notification price tags going over (10.6 billion EUR for the F-35 and 12.4 billion EUR for the SH/Growler), and question whether the HX budget will grow eventually (as was the case with the Squadron 2020 one). As said, the value given on DSCA notifications are usually not much to go by at the best of times, but here is a number of other issues at play as well.

Let’s begin by saying that I personally don’t believe there will be significant increases, though even an index-increase if the program is delayed with a year will be a lot of money when we’re talking about a 10 billion package. However, the crucial issue is that there is little room for increase when it comes to the eventual operating budgets, and so far there seems to be little indication that the Air Force will be allowed to increase it’s share of the annual budget, either through an increase in the defence budget or by shrinking the budgets of the Navy and/or Army.

The other issue is that this isn’t a question of the budget being a few hundred millions over 10 billion, but rather it should be remembered that a significant part of the 10 billion allocated will be spent outside the items found in the DSCA notifications. To begin with, around 700 MEur will be spent of other stuff (infrastructure, the work of the procurement agency, early training, etc.). In addition, the operations from first aircraft delivery until IOC/FOC will in part be covered by the 10 billion as the Hornets continue to fund their operations out of the Air Force’s annual operating budget. There are also infrastructure changes and possibly other significant investments that will be made outside of the contract that is covered by the notification, including non-listed equipment and equipment from third countries. As such, if one were to take the number quoted in the notification at face value, and I repeat – one shouldn’t, the question wouldn’t be if the Air Force can sneak in a budget increase of a few hundred millions, but whether they can pull off an increase of the programme value that is spelled out in a ten-digit figure. I don’t believe they can, and don’t believe they are going to try. Following the release of the notifications, Puranen also noted that they feel confident they are able to deliver the required capabilities within the current budget.

It should, however, be acknowledged that there are some worrying signs that the budget really is tight, just having two spare engines for the F-35 and no HARM/AARGM for the Super Hornet/Growler comes to mind. Even if those two items can be sorted out, the question lingers if they are only the tip of the iceberg, and what more is hidden under the surface when it comes to missing or low quantities of crucial items?

10 thoughts on “HX goes DSCA

  1. Daniel Wilson

    Given the packages of weapons and supplies suggested in the two offers, and the quoted total sum, is it possible to tease out a price per aircraft from these numbers?

  2. Znail

    The US offers not including any medium ranged missiles means that the EU offers (assuming they include Meteor) will be at an advantage when the offers are war gamed as Meteor is much better then AIM-120C that Finland currently have. More missiles will be another advantage as most EU offers can also use AIM-120C and an extended war game scenario can run out of missiles.

    1. juhamac

      These aren’t offers. Besides, Amraam usually appears separately like so many recent 120D (C8) releases (NL, ES, JP, UK) seen at the DSCA’s pages. There’s not a single F-35 DSCA that has medium range armament included with it. The Finnish and Swiss ones seem to have been the first to have any armament included.

  3. KJK

    About engine spares…
    No apples to apples comparison applies of course, but I’d think that having multiple whole replacements would enable better plane availability. Don’t mess with subassemblies, let the workshop worry about those and get the plane back into air.
    As for which engine has longer life, I wouldn’t bet for F-135 : most of the leeway granted by more modern design has most likely been cashed out already as improved power rating as shown e g by increased turbine temperature -if one can trust the numbers appearing in public- ; improved materials & designs can do miracles but there are limits to even those miracles.
