The odd bird – EA-18G Growler

In the HX program full of multi-role fighters, the EA-18G Growler seems like the odd bird out, being a highly specialised electronic warfare platform. However, the first thing to note is that the Growler in fact can do both. “It operates and flies the same [as the F/A-18F Super Hornet], it has the same weapons except the two wingtip AIM-9 Sidewinders” Boeing’s representative explains. “It is a fully multirole platform.”

Flying the front-seat is the same.

But let’s not kid ourselves. While it is nice for a small air force to know that any airframes allocated to the electronic warfare role aren’t automatically taken away from the air superiority mission, no-one will pay the premium the Growler requires to just get another multirole aircraft. But perhaps the first question is why anyone would pay for the Growler in the first place, considering that the other contenders are happy to fly the SEAD mission with multirole fighters equipped with jamming pods.

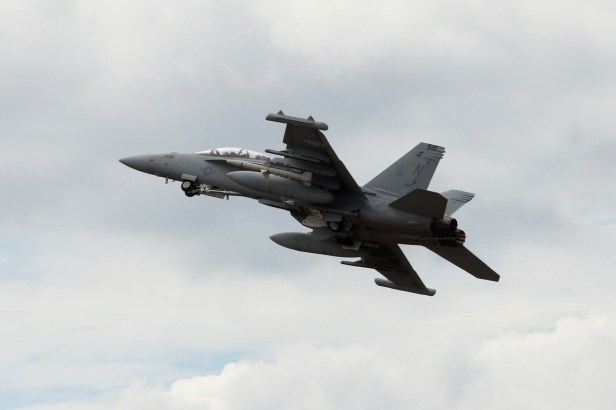

EA-18G take off
EA-18G Growler of VAQ-129 ‘Vikings’ taking off during its display at Tikkakoski air show. Note the decision to fly with a partial external load (twin AIM-120 AMRAAM, twin droptanks, and a single AGM-88E AARGM). Source: Own picture

But while the Growler externally looks like just another F/A-18F with jamming pods, looks can be deceiving. The Growler shares 90% commonality of parts with the baseline F/A-18F Super Hornet, the rest is made up of a fully integrated active/passive electronic warfare suite, based on a pedigree of decades of experience of the electronic attack role. The industrial team behind the Growler include both Raytheon (sensors), Northrop-Grumman (the company behind the EA-6B Prowler), and Boeing themselves (who’s own electronic attack portfolio dates back to the AD-1Q Skyraider), providing a solid background for what soon will be the sole tactical electronic warfare aircraft in the US inventory.

[Growler is] full spectrum. Pods cover part of the spectrum, this covers all of it.

The Growler is far from just a flying SAM-jammer. It gathers data from and analyses all electronic emissions in the area, and then share it via its high-capacity datalink (which as discussed in the last post, is now coming to the basic Super Hornet as well). It’s also able to jam a large number of bandwidths, making it able to perform such diverse missions as denial of communications (jamming enemy military and/or civilian networks), counter-IED patrols, and the traditional SEAD-mission most closely associated with the “E for electronic warfare”-designation. Notably, the disruption of communications is just the kind of joint capability that the Finnish Defence Forces is looking for with HX, allowing the Air Force to directly support the Army (and Navy) by means other than simply sweeping the skies clear of enemy strike aircraft. The sharing of information about enemy emissions in the full electromagnetic spectrum also provides a huge boost to friendly forces when it comes to piecing together the situational picture of the battlefield.

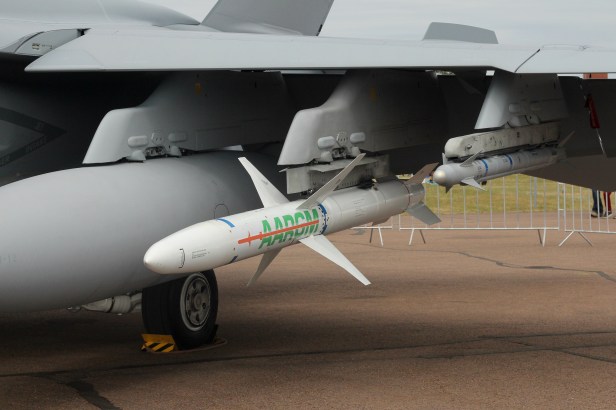

AGM-88E AARGM next to an AIM-9X under the wing of one of the two EA-18G Growlers that made the types first visit to Finland. Source: Own picture

In the SEAD-role the main weapons are the signal-seeking AGM-88 HARM and its newer cousin, the imposing AGM-88E AARGM. The later sport a number of upgrades, including longer range and a wider seeker band, but also GPS/INS navigation and a millimeter wave radar for terminal guidance. This means that even if you switch off your radar after launch, there is a good chance that the missile will find and kill you (or at least your radar).

But it’s not only in the air-to-surface domain that the Growler is an interesting option. While it is less commonly discussed, having a Growler feeding information and disrupting enemy units provides a huge advantage in the air-to-air role as well (“game changing” are the words used by Boeing). While electronic warfare is one of the most secretive fields when it comes to precise capabilities, making it hard to differentiate marketing talk from pure capability, it is notable that the introduction of the F-35C into US Navy does not spell the end for either the Super Hornet or the Growler. Neither aircraft has any set retirement date, and it does seem clear that the F-35C as well will rely on support from the Growler if faced with an high-end scenario. This certainly says something about the level of trust the US Navy places in the aircraft.

Every aircraft require a Growler going into an advanced threat.

The tactical value of having Growlers as part of the Finnish Defence Forces’ inventory would certainly be significant, but is the Growler a realistic alternative for Finland? The short answer is that no one knows for certain (yet), but those in the know seems to think so. Minister of Defence Jussi Niinistö was clear on the HX press conference when answering questions about a split HX-buy that while a two-fighter force wasn’t an option, a Super Hornet/Growler-mix certainly was. The US government also seem to think so, as they readily allowed Boeing to lease two Growlers for the Finnish 100 anniversary air show (it has to be remembered that the Super Hornet-deal would be a government to government one). As this was effectively marketing for HX (with a touch of national security diplomacy), sending the Growler only makes sense if that is part of the product-package. The choice of unit was interesting as well, as the Growler came from VAQ-129, the sole training unit for Growler pilots and WSO’s. In other words, this is the very unit which in just a few years time could be training the first batch of Finnish Growler backseaters.

It largely then comes down to money, and this is an interesting one. The US Navy fact file lists the unit cost of the Growler at a very reasonable 67 million USD (a price tag they haven’t updated since 2011). However, things start to look more opaque once the Australian export order is brought up. The plan was for twelve of the RAAF’s 24 F/A-18F to be brought up to Growler standard for a price tag of 1.5 billion AUD (950 million EUR), or 79 million EUR per aircraft for the upgrade alone. However, that was without the crucial ALQ-99 jamming pods, which for a full set of pods for twelve aircraft would have added a further 1.4 billion AUD (890 million EUR). Furthermore, the currently ongoing 20 year upgrade program for “the EA-18G platform as well as those Fundamental Inputs to Capability [ALQ-99 and associated weapons support and training systems]” has a price tag of 5 to 6 billion AUD (3.2 to 3.8 billion EUR), or over 25 million EUR per aircraft and year until it reaches full operational capability by 2031. A key part of this is replacing the old ALQ-99 jammers with the new Next Generation Jammer (NGJ), a multi-billion dollar program in which Australia is a partner. However, the seemingly outrageous operating price tag isn’t undisputed. Exactly how the cost for the Australian Growler-upgrade will be spent is unsure, e.g. what part is spent on actual new hardware and what part, if any, is spent on what would normally be seen as operating costs. As a counterpoint, some years ago Forbes listed the per flight hour cost for the Growler as being slightly lower than that of the basic F/A-18F (9.2k USD compared to 10.5k USD). Another question which significantly would change Finnish operating costs is how the Finnish cooperation agreement with US Navy would look. As noted, the Growler-crews would likely head over to the states to get part of their training there. But also when it comes to e.g. the jamming pods one possibility is to instead of outright buying them a lend (or lease) might be possible. The bottomline is that it is extremely hard to get a clear picture of what the acquisition and operating cost for the Growler would be, though it is safe to say that introducing this kind of completely new capability would come at an additional cost. What should be remembered is that in the opening buy the Super Hornet will have a significantly smaller transition cost for re-training the whole Finnish Air Force from one fighter to another, meaning that Boeing might have more room to throw in something extra, such as a bunch of kitted-out Growlers.

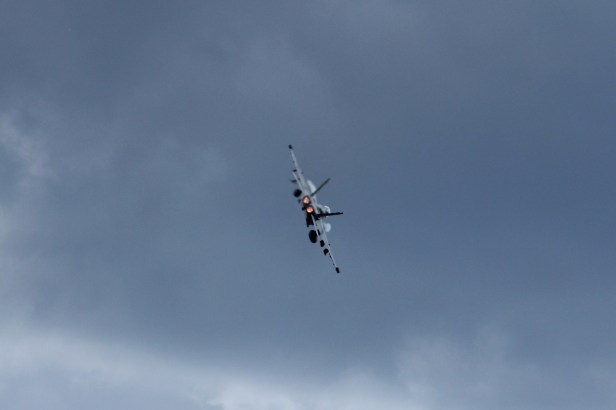

EA-18G turning.JPG
EA-18G Growler turning away from the crowd. Source: Own picture

The number of Growlers in a potential Finnish mix is open, and here Boeing themselves are unable to give a direct answer. The final and best offer will include a mix based on the outcome of the capability scenario simulations which the FDF has set for all fighters to meet. Some of these naturally favour a higher Super Hornet to Growler-ratio, some a smaller one. Based on these the customer will then make a request for how many Growlers would be fit inside the 64 fighter package, or as Boeing puts it:

It is interesting what we have to say, but in some ways also irrelevant.

4 thoughts on “The odd bird – EA-18G Growler

  1. Kjell

    You missed that the gun is also missing. Question, is Finland allowed to buy the jamming equipment and having a two man crew in the first place?

    And acourding to the DOT&E the Growler is good at jamming itself.

    1. As long as there’s room in the budget there’s nothing forbidding a second crewman.

      Finland was cleared for JASSM and ATACMS when they were really hot, and Boeing is actively marketing the Growler, so it’s likely no problem for Finland to get clearance to buy NJG *if* we want it.

      1. Kjell

        Of course Boing want to sell the Growler, more expensive. But now it’s not Boeing that okeys the sell of the jamming equipment and it wasn’t a straight okey for the JASSM. But a big issue is probably the radar if it isn’t replaced with something better as DOT&E as classified the radar as not operationally suitable since the 2006.

        “The F/A-18E/F remains operationally effective in some threat environments and ineffective in particular air warfare environments noted in classified reports.”

        “Previous DOT&E classified reports have discussed the threat environments in which the Super Hornet is not effective.”

        “SCS H10 testing showed improved AESA reliability, and while it demonstrated the highest reliability to date since introduction of the AESA in 2006, it fell short of its reliability requirement. Although the AESA provides improved performance compared to the legacy mechanically-steered radar, DOT&E has assessed the radar as not operationally suitable since the 2006 IOT&E because of poor software stability and BIT performance. Fault identification and isolation functionality have improved, but the AESA false alarm rate remains high. Additionally, the F/A-18 has demonstrated interoperability deficiencies with on- and off-board sensor inputs.”

    2. Petri Saukko

      While S300/400/500s may be somewhat overrated as a threat, one of the few good arguments for Finland to buy Hornets is the EA-18G SEAD capability. For this reason, Growler “Lite” without electronic attack capability won’t cut it either. No Growlers or only Growler Lites, lowers the chances of Super Hornet – an aging platform – in this competition. I expect the U.S. won’t hold back, even if getting JASSM wasn’t plain sailing for Finland. Some assurances are likely needed from the Finnish side.

      The capabilities of the other H/X contenders in this area are not insignificant, either.
