The Rocketeers

In the midst of the strategic acquisitions it is easy to get locked in on the choice of platform, whether it is the HX fighter or the Pohjanmaa-class corvettes. But someone has to supply the teeths to make them able to bite, and this is where companies such as MBDA come in to the picture.

© Dassault Aviation - V. Almansa
A Dassault Rafale being armed. Picture courtesy of: © Dassault Aviation – V. Almansa

MBDA is yet another of the numerous joint ventures created in Europe in a time when not even the major regional powers can muster enough of a demand to warrant developing their own high-performance weaponry. However, the company is something of an outlier in that several of the products they have on their shelf have a good reputation both when it comes to project management and the cost/capability ratio of the final product.

Arming HX

Our basic philosphy is that we are platform agnostic, we serve everybody

MBDA has a product integrated or somewhere down the propsed upgrade paths on most HX-candidates. The flagship is without doubt the very-long range Meteor, largely held to be the most capable weapon in beyond-visual range engagments against fighter-sized targets currently operational. The introduction in service aboard the JAS 39C Gripen as part of the MS20 upgrade “changed the behaviour over the Baltic Sea”, both on the part of the Swedish fighters carrying them as well as for the Russian aircrafts they meet there. Courtesy of the ramjet engine and the 100+ km range, it provide “at least three times the no-escape zone” of current medium range missile (read: AIM-120C AMRAAM). The missile will find itself under the wings and fuselages of the Rafale and Typhoon within the next few years in addition to Gripen (both Charlie and Echo), creating an interesting dilemma for a manufacturer supplying highly complex equipment which is to be integrated into competing platforms. MBDA’s solution is to assign each aircraft and country it’s own manager, making sure that there are watertight bulkheads between any platform specific information entering the company.

For Gripen in HX, that man is Peter Bäckström, MBDA’s director exports for the Nordic region. An engineer by trade, he worked on a number of subsystems for the Meteor and TAURUS KEPD 350 before moving into sales. He has a clear view about what made the Meteor different from so many other projects. “It was born out of a requirement, a need for a 100+ km capable missile”, he notes, before continuing. “Game changer is a worn-out term, but this really is. It establishes a new set of rules.”

For the Gripen E, the Meteor and the increased number of hardpoints changes what has often been decried as a light fighter into a serious BVR-force, with a maximum load of seven Meteor and two short-range IRIS-T on the wingtips. While the maximum load might not be suitable for everyday carriage (if nothing else then due to budgetary constraints), it still places the air-to-air weapons load more or less on par with e.g. the Rafale.

Meteors

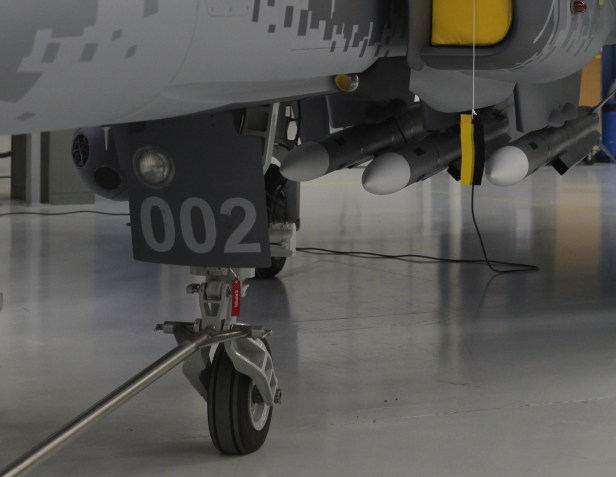

The fulls-scale Gripen ‘Echo’ mock-up showing three belly-mounted Meteors. Source: Own picture

But Meteor is far from the only thing MBDA has to offer for HX. ASRAAM is also found in their arsenal, a rather unique missile in being designed for ranges which are usually the realm of radar-guided ones. Given this, I have to ask Bäckström if there is any truth to the rumours that it can outrange the AIM-120 AMRAAM. Bäckström just smiles, and simply quips “It’s a very good missile”. In roughly the same class, the MICA-family (with both IR- and radar-guided versions) is set to be upgraded within the next decade. Unlike the Meteor, from the viewpoint of HX MICA is tied to Rafale. If Finland buys Rafale, we will likely get the MICA as well, but if any other aircraft takes home HX the MICA likely won’t make it’s way into the Finnish inventory (though it isn’t ruled out).

For heavy cruise-missiles, there’s not one but two options. The best known is likely the combat-proven SCALP/Storm Shadow, sporting inertial/GPS/terrain reference guidance and an IIR-seeker for terminal guidance. The different parameters which can be set include fusing (air burst, impact, or penetration) and dive angle. The missile is designed to feature a very high level of automation on the part of the pilot, meaning that it is suitable for single-seat fighters as well as twin-seaters.

37569094745_50d78594db_k

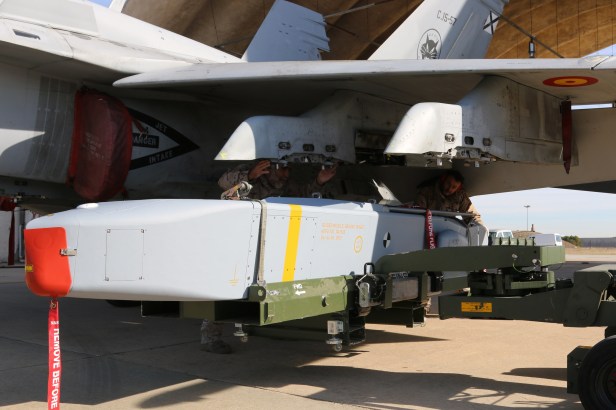

A TAURUS KEPD350 being loaded onto a Sapnish F/A-18 Hornet (C.15). Source: Ejército del Aire Ministerio de Defensa España via Flickr (CC BY-NC 2.0)

The Taurus KEPD 350E is the other alternative, being built to a different requirement for the German and Swedish Air Forces (though Sweden is yet to acquire and put the weapon into operational use). The ‘350’ in the name comes from the requirement of 350 km range in all conditions at all drop heights. In practice, this means that the range when dropped from height is well above 500 km. It can be dropped from as low as 100 meters, which often is little more than a gimmick for stand-off weapons. However, for Finland this might actually be a useful feature, as there is value in staying below the radar horizon of the Russian ground based air surveillance radars. The 480 kg MEPHISTO penetrating warhead with pre-charge is also described in grand terms.

This is a real penetrator, not a ‘put down it down in a hole and blow it up’-warhead

TAURUS actually did compete for the contract which was won by the JASSM regarding integration into the Finnish Air Force F/A-18C Hornets. It is hard to tell what made the TAURUS come in second back then, whether there were particular political considerations or ease of integration (US fighter – US missile, though ROKAF has opted for the TAURUS for their F-15K Strike Eagles and Spain is integrating it on the Hornet) which played into the decision, or whether it was purely based on performance of the missile in question. In any case, the TAURUS is set to be integrated on Typhoons and not completely unlikely to appear on the 39E Gripen, so it wouldn’t be altogether surprising for it to fill that JASSM-shaped void after the retirement of the Hornet.

Ground-/Ship-based

While the airborne systems grabs all the attention, the question of air defence system for the Pohjanmaa-class (Squadron 2020) is still unresolved. The last of the major weapon systems open, it will pit ESSM against the CAMM-ER (Barak 8 has been mentioned in the speculations, but is likely too large. I-Derby might be on offer instead). CAMM and CAMM-ER shares some of the same ancestry as the ASRAAM, but has developed into a rather different beast. The weapon feature a newly developed radar seeker, and is able to be quad-packed into a Mk 41 (or the smaller and lighter ExLS) just as the ESSM. From there the CAMM+family is soft-launched, and sports ranges in the 25 to 45 km class, depending on exact version and target. Interestingly enough, packed into the launcher it is completely maintenance free for a decade. This also ensures that once Finland has gotten the missiles, it is possible to operate them completely independently from the supplier. Or as Bäckström describes it:

A sovereign supply solution.

The weapon is already operational with the Royal Navy (and has been sold to other nations), but perhaps even more interesting is that the British Army performed their first firings of the Land Ceptor (known as EMADS in mainland Europe) earlier this year. If MBDA manages to get the CAMM-ER chosen as the main air defence weapon for the Finnish Navy, MBDA could suddenly claim synergy effects in the race for a longer-ranged ground-based air defence system for the Finnish Army. So far the ability of the NASAMS systems (already in Finnish service as the ITO12) to fire the longer-ranged AMRAAM-ER has made it a favourite, but questions has also been raised if that would mean putting too many eggs in the same basket. Notably the CAMM-ER would also provided the altitude coverage the Finnish Army is looking for following the retirement of the Buk-M1. A Land Ceptor solution able to use a joint missile stock with the Navy’s corvettes might suddenly be a very interesting proposition.

Land ceptor
Land Ceptor during test fires in Sweden earlier this year. The time lapse shows the cold launch sequence in which the missile is flung upwards out of the tube, and only then firing its engine. Source: UK MoD (Crown copyright/OGL)

Another interesting thing to note is that MBDA is quick to point out that the missile would fit nicely into the Swedish organisation as well, as an all-weather mid-tier missile between the Patriot and the IRIS-T. While currently all light is on the Patriot-deal, it is clear that two understrength air defence battalions won’t provide the air defence coverage needed by the Swedish Army, and MBDA raising the benefits of a joint Finnish-Swedish buy (either of whole systems or missiles) might be worth keeping an eye on. Normal caveat about companies liking to market that they are in negotiations/close to a deal applies…

The draft text has been read through by MBDA, to make certain that it only contain non-classified information and general comments. Minor changes followed as part of the feedback received from them.

4 thoughts on “The Rocketeers

  1. MBDA is also marketing the AASM rocket-boosted 500lb bomb carried by the Rafale. It’s an interesting weapon with a range of 60km, several seekers available and the typical strike loadout is 6 per plane.

    1. Kristian

      Aren’t the French guided aircraft weapons hideously expensive though? Maybe AASM is different but their laser guided bombs apparently cost about x10 compared to the US versions.

      1. Marcus

        French Air Force uses Paveways like everyone else for your basic 250 kg laser-guided bomb. AASM/SBU come into play for more complex scenarios.
